Stairs

Free Revit Stair Families and 3D Staircase Models

Our Revit stair families collection covers straight flights, spiral staircases, metal and industrial stairs, ladders and access steps in RFA and RVT format. Native Revit stairs are system families you build with the Stair by Component tool, which is fine for standard flights but slow when you need a sculptural spiral or a prefabricated metal unit — that is exactly where a ready-made loadable family saves the afternoon.

What you get in this category

• Spiral and helical staircases (.rfa) — circular flights with central column, the geometry that is most tedious to model natively.
• Straight and L-shaped flights (.rfa / .rvt) — timber, concrete and metal stairs with landings.

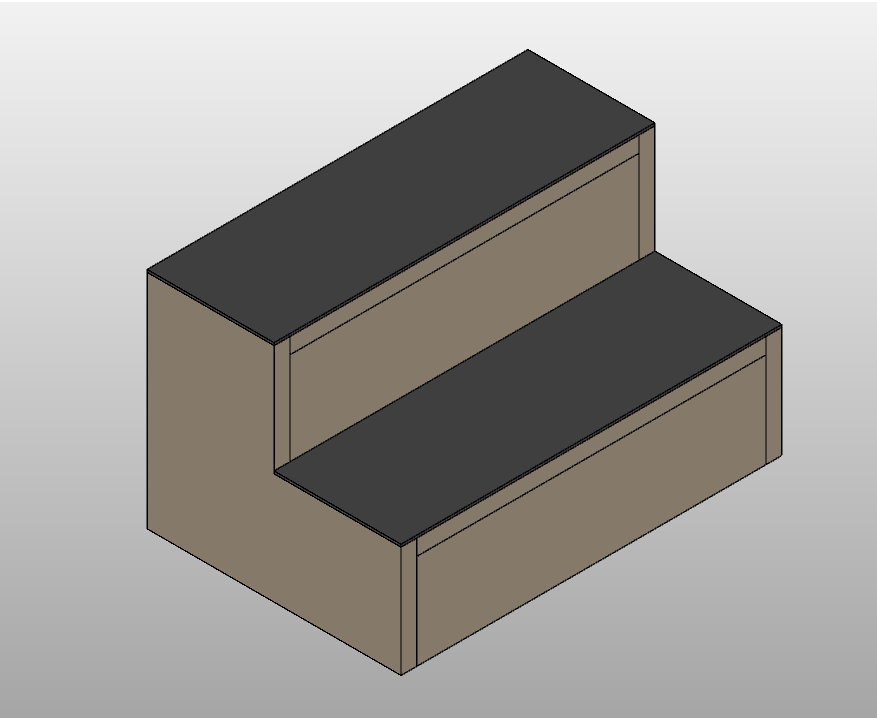

• Industrial stairs and ladders (.rfa) — access stairs, inclined ladders and stepped platforms for technical areas.
• Free and Premium downloads — most files are free with a registered account; a subscription unlocks the full library.

Riser, tread and headroom before you place anything

A staircase that looks right in 3D can still fail a code check, so verify the numbers before committing. Riser and tread dimensions must stay consistent across the flight — most codes cap riser height and set a minimum tread depth, and the relationship between them is what makes a stair comfortable rather than merely legal. Headroom is the constraint people forget: you need clear vertical space above the nosing line the whole way up, and it is usually the floor opening above, not the stair itself, that causes the failure. Landings need at least the width of the flight, and more where the stair changes direction. Note that a stair delivered as a loadable family may sit on the Generic Model or Specialty Equipment category rather than the Stairs category, which means it will not appear in a stair schedule or generate an automatic path of travel — check this if your documentation depends on it.

Handrails and related categories

Every stair needs a guard: browse our handrail families for balusters, glass panels and pipe railings. Planning the whole vertical core? See our elevator families or the complete building installations category.

Want to go deeper?

Our guide on Revit stairs and advanced architectural families walks through stair typologies and how to choose between modeling natively and loading a ready-made family.

Frequently asked questions

Are these Revit stair families free?
Yes. Most files are free to download with a registered account. A Premium subscription removes limits and unlocks the full library.

Why can’t I edit a downloaded stair like a native Revit stair?
Native stairs are system families created with the Stair by Component tool. A downloaded loadable family is a component, so you edit it in the Family Editor rather than through stair sketch mode.

Do the stairs include handrails?
Some families include integrated railings; others are the flight only. Handrails are available separately in the linked category.
