Revit stairs are among the most complex and strategic architectural elements within any BIM model. Accurate modeling not only defines the documentary quality of a project, but also directly impacts multidisciplinary coordination, regulatory compliance, and workflow efficiency.
In this comprehensive guide on Revit stair families, you will discover what types exist, how to configure them with parametric precision, what the most common modeling errors are, and where to access high-level resources that will elevate the quality of your projects in 2026. Whether you are a seasoned BIM professional or consolidating your intermediate knowledge, this article is designed to offer you real, applicable value from the first read.
Why are Revit Stairs a Critical Element in BIM Modeling?
In today’s BIM environment, modeling a staircase in Revit goes far beyond drawing steps. A well-configured Revit stair family carries structural, accessibility, fire safety, and coordination with installation information, all simultaneously and linked.
The complexity of this architectural element lies in several converging factors:
– Variable geometry: treads, risers, railings, and landings must adapt to multiple spatial typologies.
– Strict regulations: each jurisdiction sets minimum and maximum dimensions that the model must automatically respect and document.
– Multidisciplinary coordination: the staircase interacts with the supporting structure, slab voids, fire protection, and vertical installations.
– Automated documentation: a well-parametrized family generates updated sections, elevations, and legends in real-time.
Investing time mastering architectural Revit stair families is therefore a productivity decision that multiplies across the project’s lifecycle.
📌 Key Fact: According to the internationally adopted BIM Level 2 methodology, vertical circulation elements such as stairs must be modeled with a minimum LOD of 300 to ensure discipline coordination in the executive design phase.

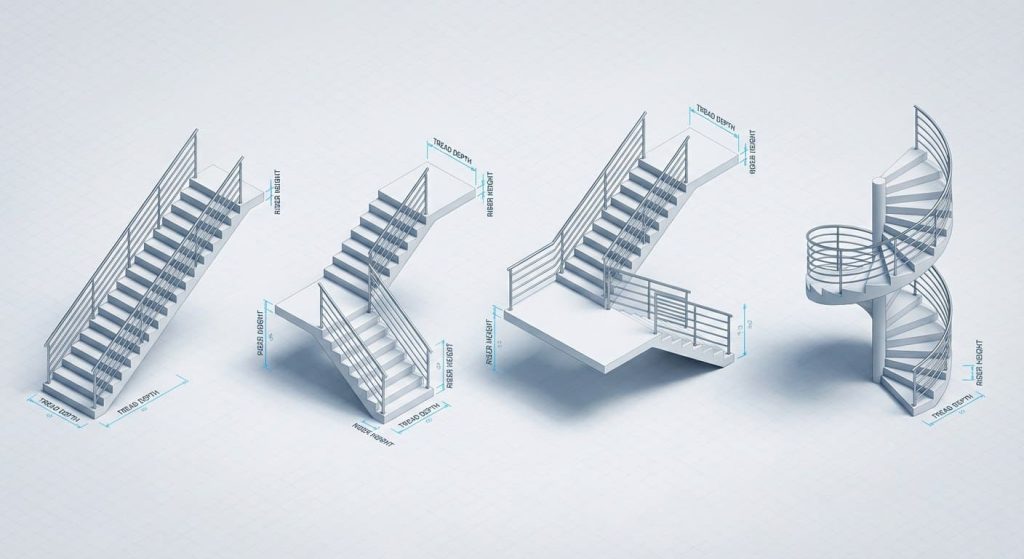

Types of Revit Stair Families Available in 2026
Revit organizes stair modeling into two major paradigms worth distinguishing from the start: component-based stairs and sketch-based stairs. In current versions, the component system is Autodesk’s recommended approach for medium and high-complexity projects.
Component-Based Stairs
It’s the standard and most powerful method available in Revit 2024-2026. It allows assembling the staircase from discrete, independent elements:
– Straight flights: the most common type, parametrizable in the number of risers, width, material, and finish.
– Curved and helical flights: spiral and organically designed stairs maintain automatic regulatory coherence.
– Landings and platforms: independent components that connect to flights with adaptive restraint logic.
– L-shaped, U-shaped, and Z-shaped stairs: multiple flight configurations with intermediate landings, ideal for residential and office buildings.
Sketch-Based Stairs
A legacy method from previous versions, still available in Revit 2026 for compatibility. Allows more formal freedom but offers less parametric control and hinders precise quantity take-offs. Recommended only when the component system cannot replicate highly formally complex architectural geometries.
Custom Assembly Stairs
In high-detail projects —unique buildings, heritage, or author architecture— advanced BIM teams complement Revit’s component system with custom Revit families (RFA) for treads, metal stringers, glass railings, and special flooring. This combination allows achieving LOD 400 without sacrificing the model’s parametric intelligence.
Key Parameters for Modeling BIM Stairs with Architectural Precision
The true power of parametric BIM stairs lies in the intelligent configuration of their parameters. Mastering them marks the difference between a functional model and a truly professional one.

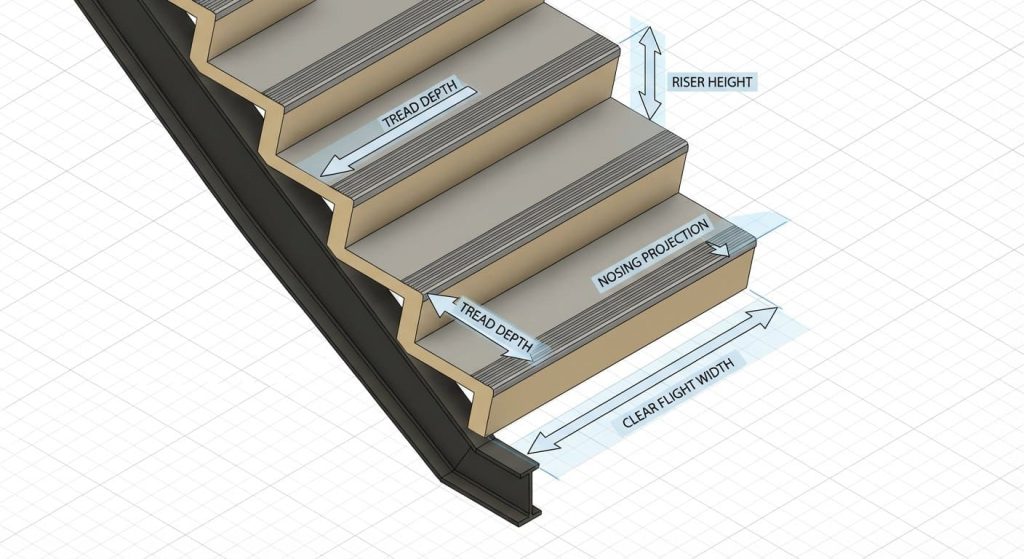

Fundamental Geometric Parameters
| Parameter | Description | Typical Regulatory Range |
|---|---|---|
| Tread Depth | The horizontal depth of the step | 11–13 inches |
| Riser Height | The vertical height of the step | 6–7 inches |
| Flight Width | Free circulation width | ≥ 31.5 inches (residential) |
| Number of Risers | Number of rises per flight | Variable by floor height |
| Nosing Projection | Edge projection of the step | 1–1.5 inches |
Blondel’s rule —2R + T = between 24 and 25.2 inches— remains the comfort standard that Revit can automatically verify if the correct formulas are set in the family’s parameters.
Informational Parameters (BIM Data)
Beyond geometry, a well-developed Revit stair family includes crucial information parameters for asset management:
– Tread and riser material: linked to the project’s material schedule.
– Estimated load capacity (for structural coordination).
– Fire resistance classification of the assembly.
– Applicable regulatory reference code (IBC, etc.).
– Construction phase: for renovation projects with different phases.
Active Constraints and Dimensions
Correctly configuring offset constraints concerning the project’s levels ensures that the staircase automatically updates with any changes in floor heights. This linkage is essential in projects where levels are revised during the design process.

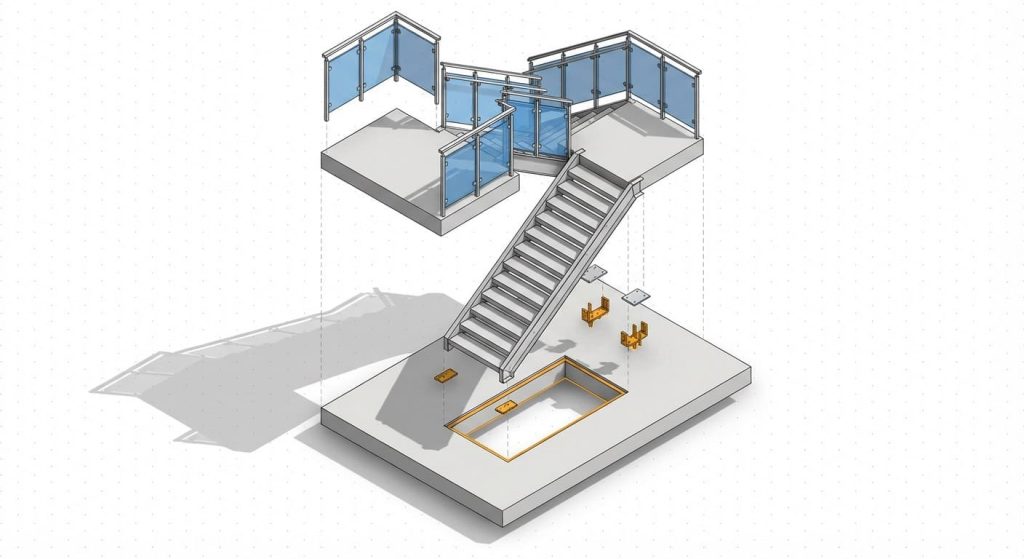

Advanced Revit Stairs: Configurations and Professional Best Practices
Once the fundamentals are mastered, the difference between a standard model and an advanced-level one in BIM stair modeling is built on the following practices:
1. Parametric Railing Families
Railings in Revit are independent families associated with the staircase. Configuring an advanced parametric railing involves:
– Defining custom handrail profiles using profile families.
– Establishing spindle spacings that automatically comply with regulations.
– Linking the handrail to the staircase’s start and end levels to follow their changes.
2. Integration with Slab Openings
One of the most critical tasks in architectural-structural coordination is defining the stair void in the slab. In Revit, this is managed through Opening by Face or direct void openings in the floor element. The best practice is for the stair family to have an embedded subtraction solid that automates this cutout when placed in the model.
3. Stairs in Multiple Design Phases and Options
For renovation projects, advanced Revit stairs must be configured with distinct demolition and construction phases. Revit allows assigning phases to each stair component, generating differentiated documentation for new build and existing work.
4. Cross-Reference with Detail Plans
Linking the staircase to a detail plan with automatic call reference is a practice that significantly enhances documentation quality. Modifications in the model are reflected in the detail plan without manual intervention.
5. IFC Export of Stairs
For projects with IFC workflows (open BIM), it’s crucial to correctly map the IfcStair class and its subcomponents (IfcStairFlight, IfcSlab for landings) during export. Incorrect mapping generates federated models with information loss.
Common Errors When Modeling Stairs in Revit and How to Avoid Them
Even experienced professionals in advanced Revit stair elements make errors that consume time and generate coordination conflicts. These are the most common:
❌ Error 1: Not Linking the Stair to the Project Levels
Consequence: Changing the floor height doesn’t update the stair, creating geometric conflicts.
Solution: Always configure the base and top-level properties linked to the project levels, never absolute values.
❌ Error 2: Ignoring the Railing Subcategory Configuration
Consequence: Railings don’t appear correctly on floor plans or don’t respond to view templates.
Solution: Review the subcategory configuration in Visibility/Graphics and align it with the studio’s standard template.
❌ Error 3: Using Sketch-Based Stairs in New Projects
Consequence: Difficulty in extracting quantities, modifying geometry, and maintaining consistency between views.
Solution: Adopt the component system from the beginning of the project and reserve sketching for exceptional geometries only.
❌ Error 4: Not Verifying Blondel’s Rule During Design
Consequence: Uncomfortable stairs that are non-compliant and require costly late corrections.
Solution: Configure a parametric formula within the family or use Revit’s regulatory validation tools.
❌ Error 5: Exporting to IFC Without Mapping IfcStair
Consequence: In federated models, stairs appear as generic geometry without BIM properties.
Solution: Configure the IFC mapping before exporting using Revit’s integrated IFC export editor.
Where to Download Quality Revit Stair Families
Creating stair families from scratch can be a time-consuming process. The most efficient alternative for BIM professionals is accessing curated and verified Revit family libraries.
LibraryRevit.com: Your Reference BIM Library
LibraryRevit.com is one of the most comprehensive platforms in the BIM ecosystem for downloading free Revit families. Within the Building Installations > Stairs category, you’ll find stair families for multiple architectural typologies, from conventional residential stairs to vertical circulation elements for unique buildings.
The advantages of using LibraryRevit as a source for Revit stair families include:
– ✅ Free access with a simple registration
– ✅ Families in RFA format compatible with multiple Revit versions
– ✅ Configurable and customizable elements for each project
– ✅ Catalog organized by categories with intuitive navigation
– ✅ Integrated BIM viewer to preview families before download
> 🔗 Explore stair families at LibraryRevit.com and reduce modeling time without sacrificing quality.
CAD Library: The Complete CAD/BIM Ecosystem
If your workflow combines AutoCAD and Revit, Libreria CAD is the ideal complement. This portal offers DWG stair blocks for AutoCAD documentation, alongside a wide catalog of Revit families and models in other formats. In its Accessibility > Stairs category, you’ll find detailed CAD blocks for stairs, railings, and access plans, perfect for completing project documentation.
CAD Library stands out for its freemium model: with free registration, you can download up to 20 files daily, while their Premium plan (starting at $5.99/month) expands unlimited access to over 100,000 verified CAD and BIM resources.
> 🔗 Access the CAD Library catalog to complement your projects with high-quality CAD and BIM resources.
View Your BIM Stair Models Without Installing Software
Once you’ve downloaded or modeled your stair family, a frequent need is to share the model with clients, collaborators, or teams who don’t have Revit installed. Enter a tool that is transforming the way BIM teams collaborate.
BIMviewer.org: Free Professional BIM Visualization
BIMviewer.org is a completely free, browser-based BIM model viewer that supports the sector’s most relevant formats:
– .RVT (native Revit)
– .IFC (open BIM standard)
– .DWG, .DXF, .SKP, .NWC, and more
Its most valued features by AEC professionals include:
– Real-time section planes: perfect for reviewing the interior geometry of a helical staircase or verifying the start of a flight in the plan.
– BIM property inspection: selecting any component gives you access to all its metadata: type, material, dimensions, and parametric properties.
– Model structure tree: navigate through the IFC hierarchy (Project > Building > Floor > Element) to locate and isolate the staircase in complex federated models.
– Measurement tool: verify tread and riser dimensions directly in the browser.
– Share with link: generate a visualization link to share the model with a client without needing any software.
– Privacy guaranteed: the file is processed locally in your browser; it doesn’t upload to any external server.
This tool is especially useful for design reviews in meetings with developers, where showing the 3D model of the staircase from any angle —without opening Revit— can accelerate critical project decisions.
> 🔗 Try BIMviewer.org now: load your RVT or IFC file and view your Revit stairs directly from the browser, no installations, no cost.
Frequently Asked Questions
What is the difference between component-based stairs and sketch-based stairs in Revit?
Component-based stairs are the current standard method in Revit, where each flight, landing, and railing are discrete elements with independent parameters. They offer superior parametric control, better data extraction, and compatibility with IFC workflows. Sketch-based stairs are a legacy method with more formal freedom, but less parametric intelligence. For professional projects in 2026, the component system is always recommended.
How do I download free and quality Revit stair families?
The most recommended option is LibraryRevit.com, where after free registration, you can download verified RFA stair families compatible with multiple versions of Revit, ready to use in your BIM projects.
Are the Revit stair families from LibraryRevit compatible with Revit 2026?
Yes. LibraryRevit publishes families compatible with multiple Autodesk Revit versions. It’s recommended to verify the version listed for each download and, if necessary, update the file from an earlier version using Revit’s save option.
How can I verify my Revit stair complies with regulations before documenting it?
You can set parametric formulas within the family to automatically calculate Blondel’s rule (2R + T) and trigger alerts when values are outside the regulatory range. Additionally, model review tools like Revit Model Review or third-party solutions allow automated regulatory compliance checking across the entire model.
How can I share the stair model with my client if they don’t have Revit installed?
Use BIMviewer.org: upload your RVT file or export it to IFC and share the visualization link. Your client can explore the 3D model of the staircase, view its properties, and even take measurements from any browser, without installing any software.
What LOD should I assign to Revit stairs in my projects?
It depends on the project’s phase and model uses. As a standard reference: LOD 200 for conceptual design (approximate geometry), LOD 300 for executive design (precise geometry with real parameters), LOD 350 for multidisciplinary coordination (including connections to structure and slabs), and LOD 400 for prefabrication or fabrication (complete component detail).
Master Revit Stairs and Elevate Your BIM Projects
Revit stairs are much more than a vertical circulation element: they are a coordination node where architecture, structure, installations, and regulations converge. Mastering their parametric modeling in 2026 means betting on more coherent projects, more precise documentation, and truly efficient BIM workflows.
Throughout this article, you’ve seen the available family types, essential parameters, advanced best practices, and the most costly errors to avoid. The next step is real practice: download quality families, apply the described configurations, and validate your models with accessible tools.
