Revit door families are where most projects meet parametric content for the first time — and where the difference between a good family and a mediocre one shows up fastest: in the plan swing that reads wrong, the schedule that miscounts, the wall that doesn’t cut cleanly. This guide covers how door families actually work, which type fits each situation, the parameters worth checking before you load anything, and our free library of double, sliding, garage, and arched doors.
If families in general are new territory, start with what a Revit family is — doors are loadable families, and everything below builds on that hierarchy.
What Makes a Door Family Good
A door in Revit is a hosted loadable family: it needs a wall, cuts its own opening in it, and moves with it. Beyond that baseline, four things separate professional door families from geometry with hinges:

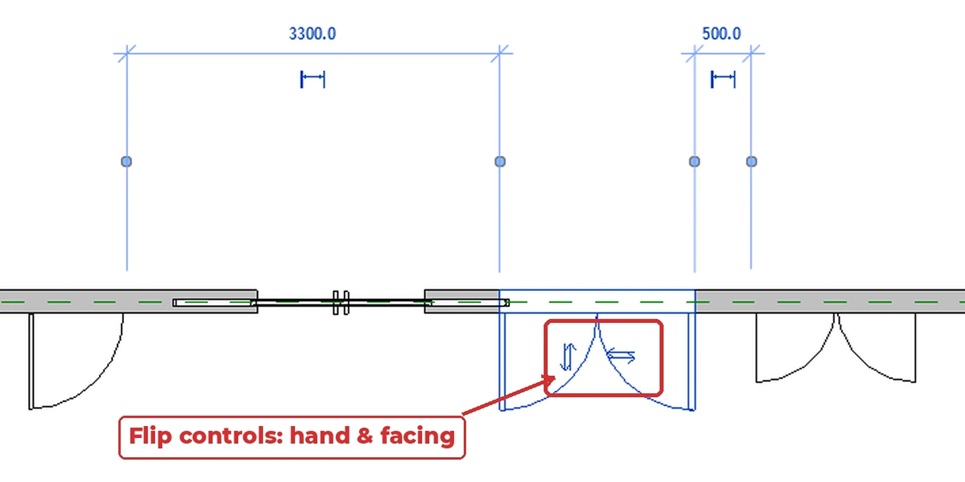

- Correct swing representation in plan. The door leaf and swing arc must read at the right detail levels, and flipping controls (hand/facing) must work — it’s the single most-checked symbol in any architectural plan.
- Clear width you can trust. Accessibility compliance lives or dies on the actual clear opening, not the nominal size. Good families expose it as a parameter you can schedule.
- Schedule-ready data. Width, height, material, and fire rating as proper type parameters, so door schedules populate themselves instead of needing manual overrides.
- Lean geometry. Detailed hardware is welcome at fine detail level — not polluting coarse plans or dragging model performance.
Why Parametric Doors Save Real Time
A parametric door family adapts through its parameters instead of multiplying into near-identical files. One well-built family covers a whole project’s variants: duplicate a type, change the width, and every instance of that type updates across plans, sections, elevations, and schedules at once. That’s the type-parameter mechanic — the same one behind all of Revit, explained in depth in our family guide — applied to the element you’ll place more often than almost any other.
The practical wins: fewer families loaded (lighter project), consistent graphics across every door of a type, schedules that count themselves, and changes that take seconds instead of edit sessions.
Door Types and When to Use Each
Swing doors — the default workhorse
Single and double leaf, the standard for most interior and exterior openings. With doubles, check that both leaves flip independently and that unequal-leaf configurations exist as types if the project needs them.
Sliding doors — where space is tight
Closets, patios, tight interiors. The parameters that matter: number of panels, pocket vs surface rail, and whether the plan symbol shows the sliding direction clearly.
Garage doors — sectional and roll-up
Residential and industrial. Look for the door type (sectional, roll-up), realistic head clearance, and elevation graphics that read at scale — garage doors dominate facades, so their proportions matter more than their hardware.
Arched and specialty doors
Arched, craftsman, and ornamental doors for restoration and character projects — the kind you least want to model from scratch, and exactly where a library earns its keep.
One special case that isn’t a door family at all: doors in curtain walls. Those are curtain panel families that schedule as doors — a different mechanism entirely, covered in our curtain wall tutorial.
The Parameters Worth Checking Before You Load

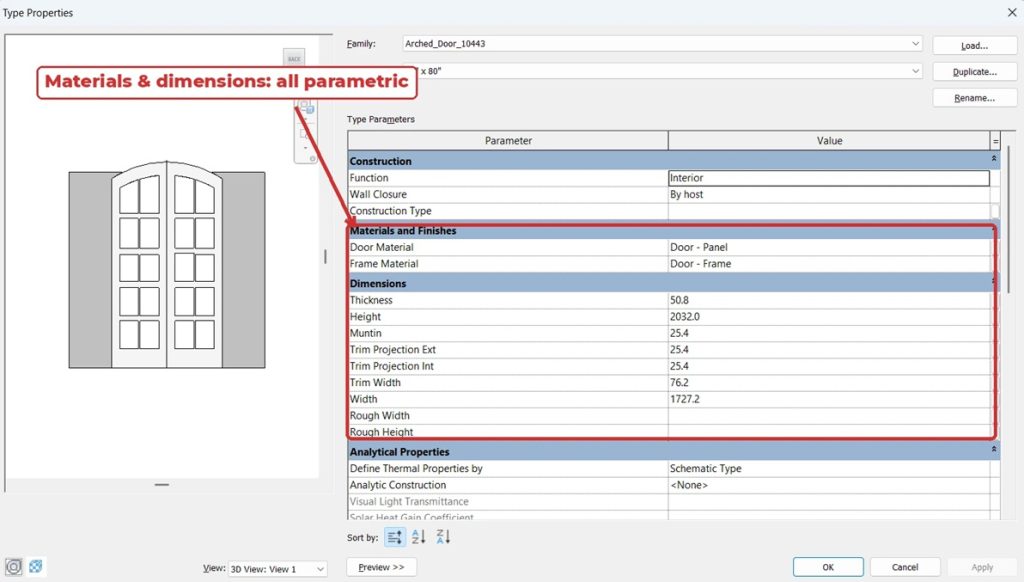

Open any candidate family’s type properties and scan for: dimensions (width, height, leaf and frame thickness), materials (leaf, frame, glazing as separate assignments), operation (swing direction and angle), construction data (fire rating, acoustic values where relevant), and identity data (type marks and comments for scheduling). If a family exposes fifty parameters you’ll never use, that’s not richness — it’s noise that slows down everyone who touches the model after you.
Download Free Revit Door Families

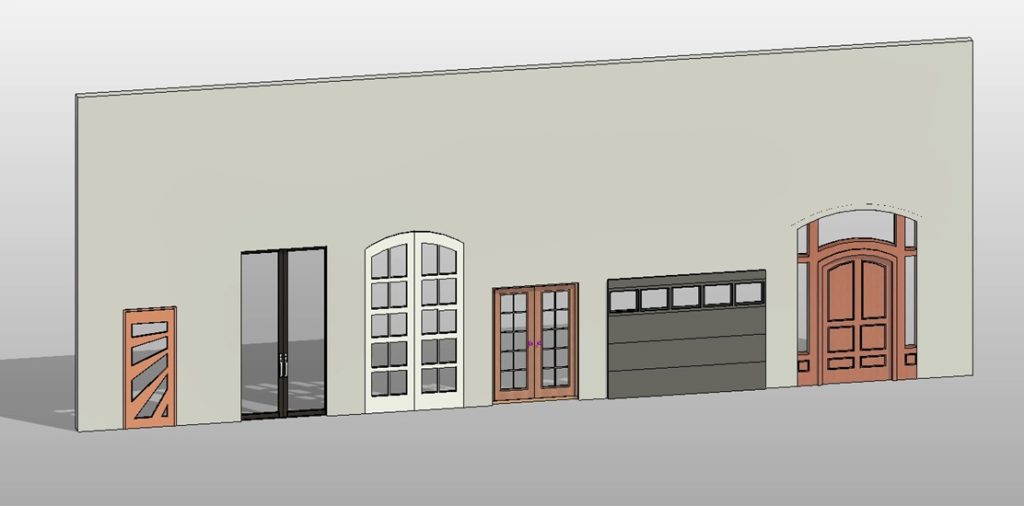

Our Doors category collects hundreds of door families organized by type, free to download with a free account, each listing its minimum compatible Revit version. A selection by typology:
Double doors
Sliding doors
Garage doors
Arched doors
Want more? Browse the full door families category — and the neighboring windows and curtain walls for the rest of the opening.
Preview before you download
Every product page includes online viewing through BIMviewer.org: open the family in your browser, section it, measure it, and check its parameters — no Revit required. It’s the fastest way to confirm a family fits before it ever touches your model.
Loading and Adjusting Doors in Your Project
- Load the family: Insert tab > Load Family > select the downloaded
.rfa. Every method — multiselection, drag and drop, troubleshooting — is in our complete loading guide. - Place it: Architecture tab > Door, pick the type in the Type Selector, and click on a wall. Doors only host on walls — that’s by design.
- Adjust: flip hand and facing with the spacebar or the flip arrows; edit type parameters for dimensions and materials, instance parameters for this door only.
- Duplicate before customizing: if you change a type’s dimensions, duplicate it first and name it clearly — your schedules will thank you.
On versions: our families work in Revit 2019 through 2026 according to each file’s listed minimum version — Revit upgrades families forward automatically, but never backward. A family saved for 2024 loads fine in 2026; a 2026 family will not open in 2024. Check the version tag on each download page before loading.
Frequently Asked Questions
How can I download Revit door families free?
Create a free account at LibraryRevit, browse the Doors category or search by type (“sliding”, “garage”, “arched”), and download the .rfa from any product page. Downloads are free with a free account.
How do I know if a door family is compatible with my Revit version?
Each download page lists the family’s minimum compatible version. Revit opens families saved in older versions and upgrades them automatically; it can never open families saved in a newer version than yours.
What are parametric doors in Revit?
Door families whose dimensions, materials, and behavior are driven by parameters — so one family covers many configurations through its types instead of requiring a separate file per size. It’s the core mechanic of how Revit families work.
Can I preview a door family without opening Revit?
Yes — every product page connects to BIMviewer.org, which opens the file in your browser with 3D navigation, sections, and measurements. No installation needed.
Why won’t my door place on the wall?
Doors are wall-hosted: they need a wall to cut, and some wall types (curtain walls, in-place masses) don’t accept regular doors. For curtain walls, use a curtain wall door family instead — the panel-swap method from our curtain wall guide.
Model Better Openings
Good Revit door families disappear into the workflow: the swing reads right, the schedule counts itself, the wall cuts clean, and nobody thinks about the door again — which is exactly the point. Start with the Doors category, preview in the browser, load with confidence, and spend the saved hours on the design decisions that actually need you.
