Revit window families are the second element every project places by the dozen — and like doors, the gap between a good family and a mediocre one shows up everywhere at once: elevations that read wrong, schedules that miss data, walls that don’t cut cleanly, and models that crawl. This guide covers what separates professional window families from filler, the types by operation and material, the parameters worth checking before you load anything, and our free library of parametric windows.
What Makes a Window Family Good
A window in Revit is a hosted loadable family: it needs a wall, cuts its own opening, and moves with it. (If the loadable/system distinction is new, start with what a Revit family is.) Beyond that baseline, four things matter:
- Correct representation at every detail level. A clean symbol in coarse plans, real frame profiles at fine detail, and an elevation that reads the opening direction correctly — elevations are where windows live.
- Separate material assignments. Frame, sash, and glazing as independent materials, so the family adapts to the project’s palette without editing geometry.
- Schedule-ready data. Width, height, and sill height as proper type/instance parameters — and if the family exposes thermal values (U-value), your energy analysis can read them. Always verify those values against the real product before relying on them.
- Lean geometry. Hardware and gasket detail at fine level only, never dragging down the coarse views where windows appear by the hundred.
Window Types by Operation

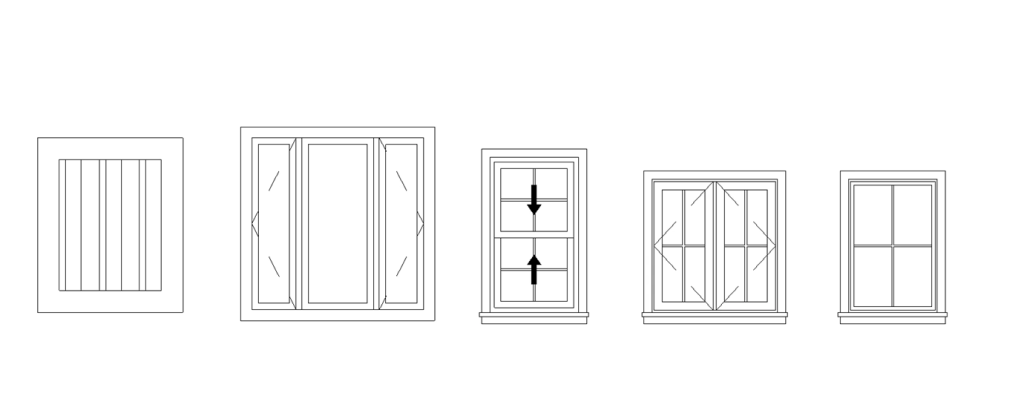

Windows are categorized mainly by how they open — and choosing the right operation type is a design decision the family should support, not fight:
- Fixed windows — no operation; maximum daylight and views. The simplest and lightest families.
- Casement and awning windows — side- or top-hinged, opening in or out. Good families flip correctly and show the opening symbol in elevation.
- Sliding windows — horizontal panels, space-efficient where a swing would obstruct. Check that the panel count is parametric.
- Pivot windows — rotating on a central axis, horizontal or vertical, for controlled ventilation and distinctive facades.
- Projected (hung) windows — opening outward at an angle from top or bottom; the rainy-climate ventilation classic.
- Double-hung windows — two vertical sashes, the residential standard in much of the world.
And by material
Aluminum, PVC, and wood joinery families differ in frame profiles and buildups more than in behavior — what matters in the family is that the frame dimensions are honest and the material assignments are separate, so an aluminum window can become a wood one without remodeling. Mixed systems (wood-aluminum) are where parameterization earns its keep.
Parametric vs Static Window Families

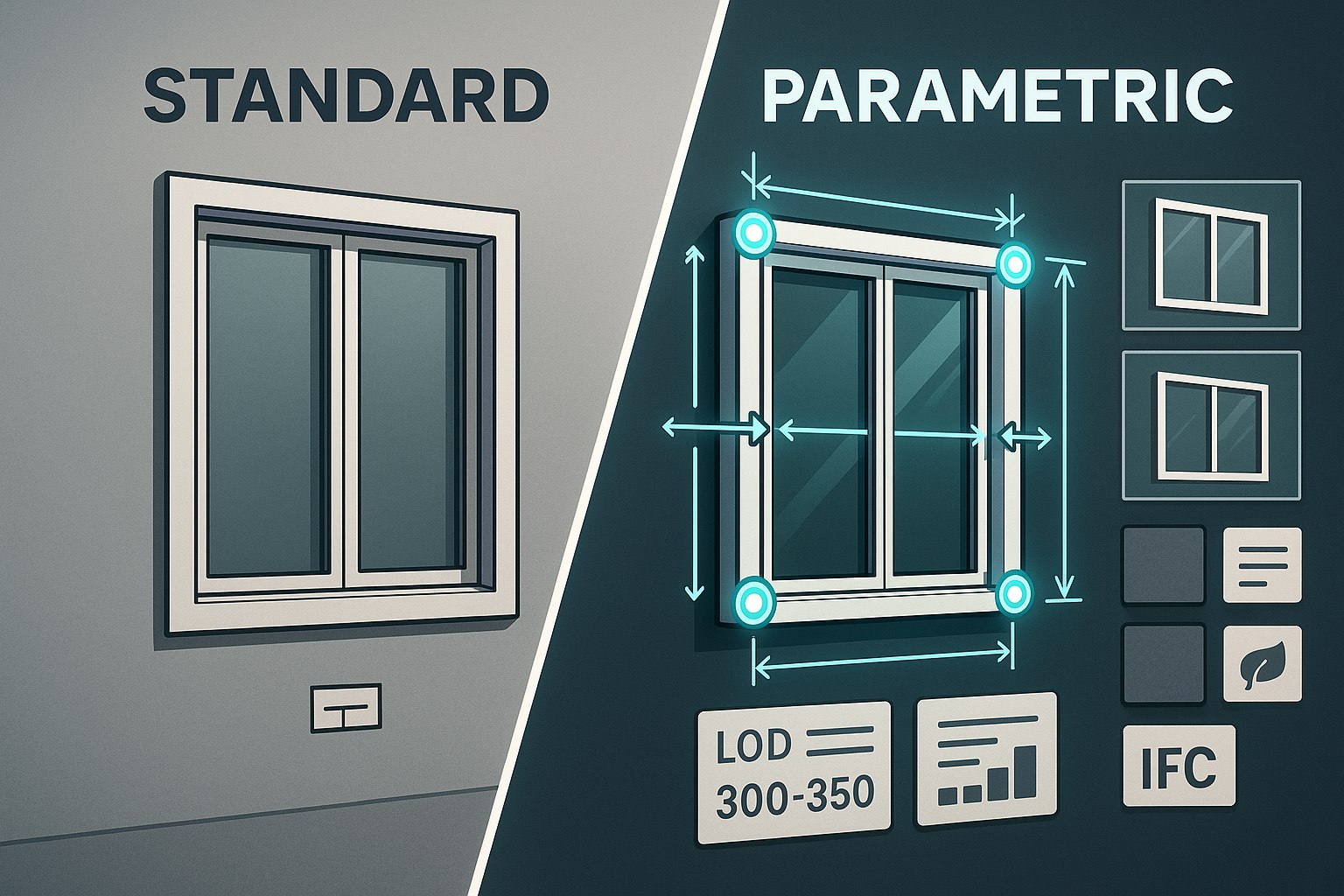

The families worth collecting are parametric: dimensions, materials, and configuration driven by parameters, so one family covers a project’s variants through its types instead of one file per size. Duplicate a type, change the width, and every instance updates across plans, elevations, and schedules at once — the core mechanic of how Revit families work. Static families (fixed geometry) still have a place in quick studies and renders, but for documentation, parametric wins every time.
The Parameters Worth Checking Before You Load

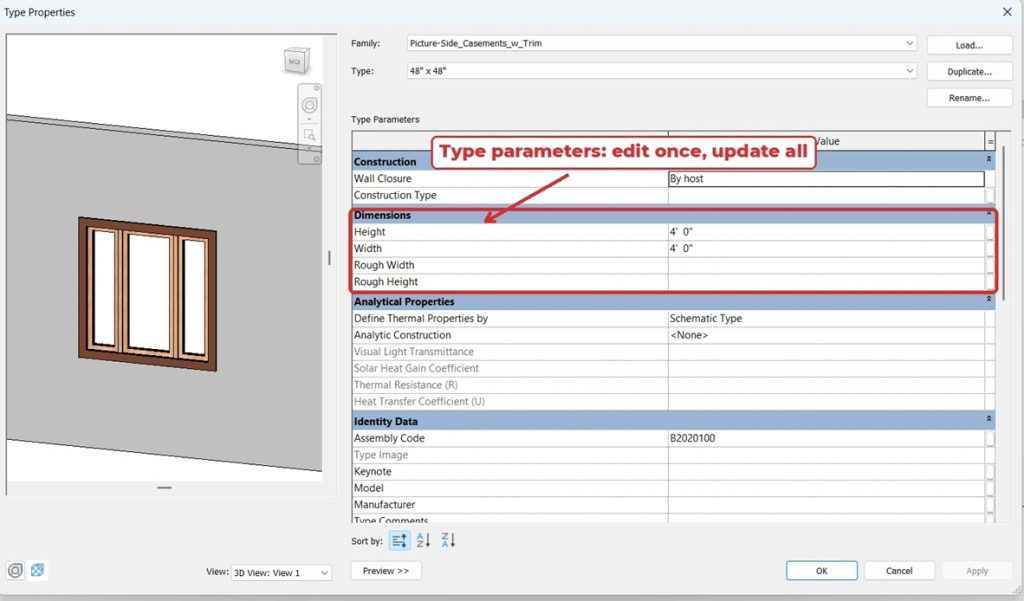

Open the candidate’s type properties and scan: dimensions (width, height, frame and sash profiles, default sill height), materials (frame, sash, glazing as separate slots), configuration (panel count, opening direction, mullion arrangement in multi-pane families), and identity data (type marks for the window schedule). A family drowning in parameters you’ll never touch isn’t richer — it’s slower for everyone downstream.
Download Free Revit Window Families

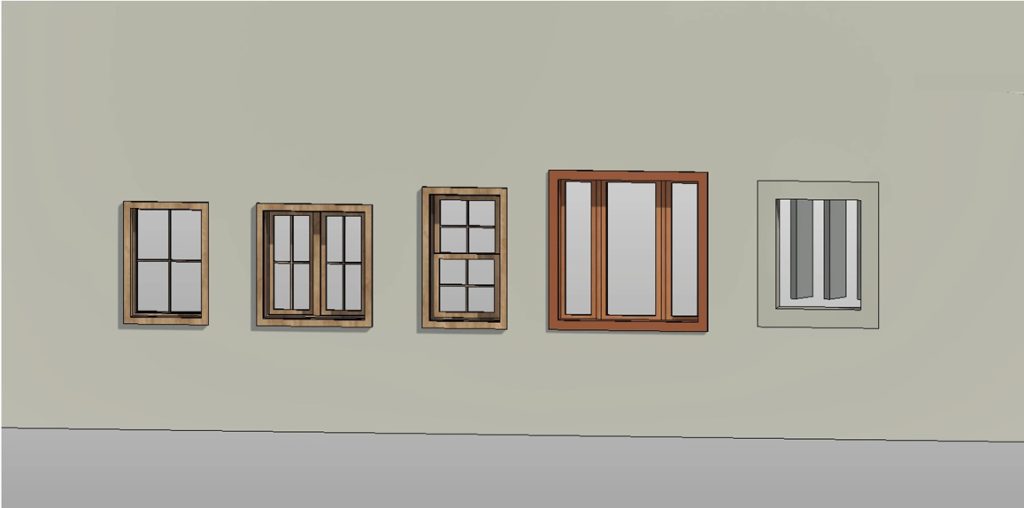

Our Windows category collects hundreds of window families organized by type — fixed, sliding, casement, louvre, and multi-pane configurations — free to download with a free account, each listing its minimum compatible Revit version. A selection:
For the rest of the opening: doors (with their own selection guide), curtain walls, and skylights.
Preview before you download
Every product page connects to BIMviewer.org: open the family in your browser, section it, and inspect its parameters before it touches your model — no Revit required.
Loading and Placing Windows
- Load the family: Insert tab > Load Family > select the
.rfa. Every method and its troubleshooting live in our complete loading guide. - Place it: Architecture tab > Window (shortcut WN), pick the type in the Type Selector, and click on a wall — windows are wall-hosted by design.
- Set the sill height: it’s an instance parameter — adjust it per window in the Properties palette, or standardize it in the type if your project repeats it.
- Duplicate before customizing: changing a type’s dimensions changes every instance of it; duplicate and rename first.
On versions, the rule that never bends: Revit upgrades families forward, never backward. A window saved for 2021 loads fine in 2026 and upgrades automatically; a 2026 family will not open in 2021. Check the version tag on each download page.
Frequently Asked Questions
Where can I download free Revit window families?
In our Windows category — fixed, casement, sliding, pivot, and multi-pane families, organized by type. Downloads are free with a free account, and every file lists its minimum compatible Revit version.
Are window families compatible with my Revit version?
Check the version tag on the download page: Revit opens families saved in older versions and upgrades them automatically, but can never open families saved in a newer version than yours.
What’s the difference between parametric and static window families?
Parametric families adapt through parameters — one family, many types, instant project-wide updates. Static families have fixed geometry: fine for quick visuals, limiting for documentation. Prefer parametric for anything that will be scheduled or revised.
How do I place a window in Revit?
Load the family, then Architecture > Window (shortcut WN) and click on a host wall. Adjust the sill height per instance in the Properties palette. Windows won’t place on curtain walls — those use glazed panels instead, as covered in our curtain wall guide.
Can I check a window family before downloading it?
Yes — every product page opens in BIMviewer.org, a free browser viewer with 3D navigation, sections, and parameter inspection. No installation needed.
Glaze With Confidence
Good Revit window families do their job quietly: the elevation reads right, the schedule fills itself, the wall cuts clean, and the model stays fast. Choose by operation, verify the parameters, respect the version rule — and let the library carry the modeling: start at the Windows category, preview in the browser, and load with confidence.
