Revit vehicle families are the parametric components — cars, trucks, buses, motorcycles, trains, boats, and aircraft — that turn a technically correct model into a scene people can actually read. A building rendered alone looks like a diagram; the same building with a few well-placed vehicles communicates scale, access, and life.
This guide covers how to choose between 2D and 3D vehicle families, where to place them for renders and masterplans, and how to do it all without slowing Revit down.
What Are Vehicle Families in Revit?
Like everything else you place in a project, vehicles are loadable families: external .rfa files with geometry, parameters, and category behavior — most living under Revit’s Entourage or Site categories, so they stay out of your building schedules. If the family/type/parameter machinery is new to you, start with our guide on what a Revit family is; everything below builds on it.

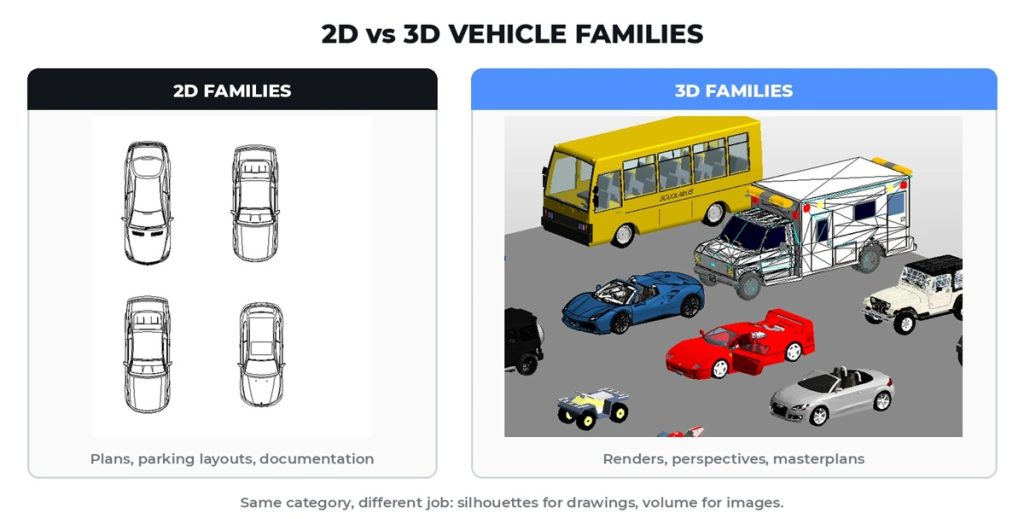

In practice, vehicle content comes in three flavors, and knowing which to grab is half the craft:
- 2D vehicles — plan and elevation silhouettes. Featherweight, perfect for parking layouts, road plans, and early documentation.
- 3D vehicles (entourage) — volumetric models that populate renders, perspectives, and masterplans with believable scale.
- Detailed BIM objects — data-rich families for specific analyses like turning radii or accessibility clearances. Heavier, and only worth it when the analysis is the point.

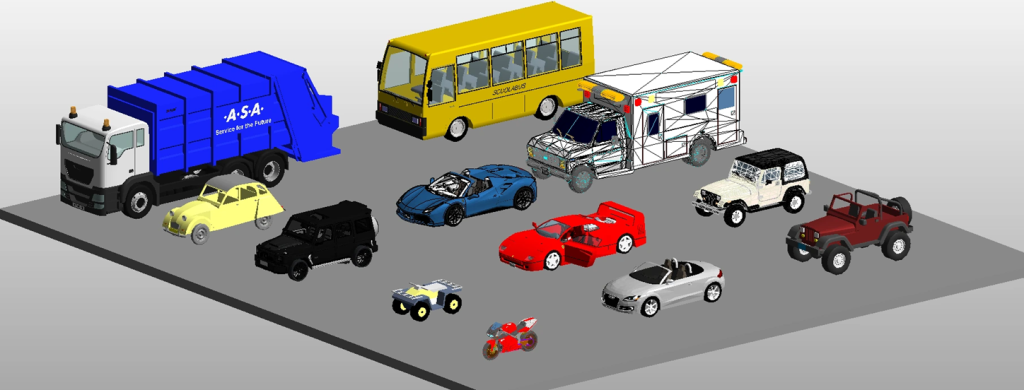

The Vehicle Types in Our Library
The Vehicles category follows Revit’s own Category > Family > Type structure, so you can go straight to the asset you need:
Cars and light transport
- 3D cars for perspectives and facade visualization, and 2D cars for parking plans and light documentation.
- Pickup trucks for suburban and commercial scenes.
- Motorcycles and bikes for bike lanes and sustainable-mobility narratives.
Heavy and public transport
- Trucks for industrial plants, loading docks, and logistics areas.
- Buses for stops, terminals, and transit-oriented masterplans.
- Railway vehicles for stations and large infrastructure.
Special context
- Ambulances — essential in healthcare projects to communicate emergency access.
- Aircraft for airport and aviation projects.
- Boats and ships for waterfronts, ports, and marinas.
How to Use Vehicles in Renders and Masterplans
Choosing the right family is the first step; the difference between an amateur render and a professional one is how you place them. Three rules cover most of it.
Rule 1: Match detail to camera distance
| Where it appears | What to use | Detail level |
|---|---|---|
| Foreground | Detailed 3D vehicle | Medium–high |
| Mid-distance | Optimized 3D vehicle | Medium |
| Urban background | Simple 3D or silhouette | Low |
| Plans and documentation | 2D vehicle | Low |
A background avenue doesn’t need modeled interiors and tire treads. Save the detailed families for whatever sits closest to the camera.
Rule 2: Use vehicles to tell the project’s story
Good context doesn’t fill space — it explains how the space works. Ambulances belong near a hospital’s emergency access; trucks at the supermarket’s loading bay; buses and bikes at a school; cars and motorcycles in a residential garage. In a park, fewer cars and more bicycles says more than any caption. To complete the scene, pair vehicles with urban objects (bus stops, street furniture) and roads and bridges.
Rule 3: Control the density
More vehicles rarely means a better image. As a starting point: 3–6 vehicles in a facade view, 8–20 in a mid-size masterplan, and 2D or low-geometry families for large parking areas. Vary model, color, and orientation — a row of identical cars parked at identical angles is the fastest way to make a render feel synthetic.
Keeping Your Model Fast
The classic complaint with vehicle content is model weight: a scene that renders beautifully and a Revit file that crawls. The fix is discipline, not abstinence:
- Prefer low/medium geometry. Polygon-heavy vehicles overload views and exports without adding visible value at typical render distances.
- Keep detail consistent across families — one hyper-detailed car among simple ones looks wrong and costs more than it gives.
- Control visibility per view. Hide 3D vehicles in documentation views; show them only where they earn their weight.
- Purge what you don’t use. Don’t carry ten types when the scene uses one; remove duplicate materials after loading.
- Test before you commit. Load new families into a scratch file first — check weight, scale, materials, and how they read in plan, elevation, and 3D — then load the approved version into the working model. The loading itself is the standard workflow we cover in how to load a Revit family.
A version note that applies to vehicles like everything else: Revit families only upgrade forward — a file saved for 2026 won’t open in 2025. Every download in our library states its minimum compatible version, so check it before loading.
One more trick for teams: to review vehicle families or share a populated masterplan with someone who doesn’t have Revit, an online viewer like BIMviewer.org opens RVT and IFC files directly in the browser — section, measure, and navigate in 3D with no installation.
A Realistic Workflow: Populating a Masterplan
Putting it all together, here’s the sequence for a residential masterplan render: define which views need vehicles and at what distance; download a small set — a handful of 3D cars, a bus or two, bikes for the paths — from the Vehicles category; verify them in a scratch file; place them following the three rules above, varying orientation and color; and restrict their visibility to presentation views so documentation stays clean.
The result is a scene that communicates scale and movement, a file that stays responsive, and hours of modeling you never had to do.
Working Across CAD and BIM
If your practice mixes AutoCAD and Revit — most do — the same context strategy applies on the CAD side: our sister site Libreria CAD offers free DWG blocks of vehicles and transport for 2D drawings and legacy documentation. Between both libraries, your entourage is covered from a napkin-phase site plan to a full BIM masterplan.
Frequently Asked Questions
Where can I download free Revit vehicle families?
In our Vehicles category — cars, trucks, buses, motorcycles, ambulances, trains, boats, and aircraft, organized by type. Downloads are free with a free account, and every file lists its minimum compatible Revit version.
Which vehicle families work best for urban context?
Low-to-medium geometry 3D cars, buses, and bikes carry most urban scenes: they provide scale without bloating the model. Keep detailed vehicles for foregrounds and use 2D families in plans. Vary types and orientations — uniformity is what makes context look fake.
What’s the difference between 2D and 3D vehicle families?
2D families are plan/elevation silhouettes — extremely light, made for documentation, roads, and parking layouts. 3D families are volumetric entourage for renders and perspectives — more realistic, heavier. Use 2D for drawings, 3D for images, and don’t make one do the other’s job.
Do vehicle families slow down Revit?
Only when geometry gets out of hand. One detailed model is harmless; dozens of polygon-heavy vehicles with duplicated materials will drag views and exports. Prefer low/medium complexity, keep detail consistent, and control visibility per view — with that discipline, vehicles cost almost nothing.
How do I add a car family to my Revit project?
Download the .rfa, then load it via Insert > Load Family and place it from the Project Browser or the Component tool. The full workflow — multiselection, drag and drop, troubleshooting — is in our complete family loading guide.
Are these families compatible with Revit 2024, 2025, and 2026?
Yes — each download lists its minimum compatible version, and Revit upgrades families forward automatically (never backward). If you need to inspect a file before loading it, BIMviewer.org lets you open and review it in the browser.
Populate Your Next Scene
Revit vehicle families aren’t decoration — used well, they communicate scale, explain mobility, and reinforce the project’s story while saving hours of modeling. Pick the right type for the phase, place with intent, keep the geometry lean. Start with the Vehicles category, add urban objects and road infrastructure for coherence, and your next masterplan will read like a place, not a model.
