Did you know that 87% of electrical engineers consider low-quality Revit lighting families to be one of the main causes of delays in MEP projects? According to the latest BIM adoption survey, 89% of AEC professionals use external libraries for their projects, reporting time savings of up to 67%. However, frustration is constant: finding families that are technically precise, parametric, and with reliable photometric data remains the main bottleneck.
This problem leads to cost overruns, specification errors, and inaccurate lighting analyses. The search for “free Revit lighting families” often leads to obsolete, merely decorative content lacking the BIM intelligence needed for a serious MEP project, which translates into hours of extra work adapting, correcting, or creating resources from scratch.
In this definitive guide, we’ll address this challenge directly. Not only will we show you where to download the best certified and free Revit lighting families, but we’ll teach you which technical specifications to pay attention to, how to integrate them efficiently into your workflow, and why the resources from LibraryRevit.com are the solution your team needs to optimize productivity and accuracy in 2026.
Revit Lighting: Beyond 3D Geometry
When an electrical engineer or lighting designer talks about Revit lighting families, they are not referring to simple 3D objects. They refer to intelligent BIM components that encapsulate crucial data for design, analysis, and construction. The difference between a high-quality family and a generic one is the difference between an efficient workflow and one prone to errors.
What Defines a High-Quality MEP Lighting Family?
A professional-grade lighting family must be a repository of structured data. These are the non-negotiable components:
- Electrical Connectors: The component must have functional electrical connectors that allow real integration into the circuits of the MEP model.

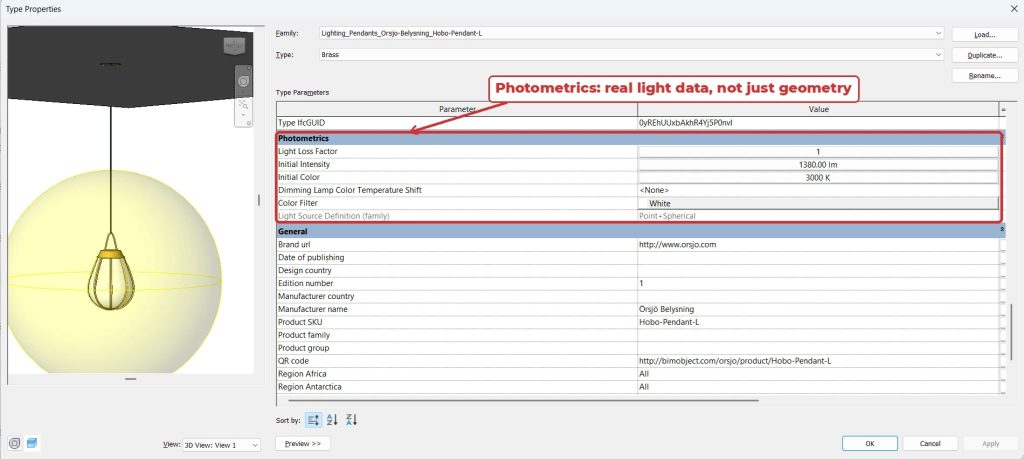

- Photometric Data (IES Files): The family should host or link an .IES (Illuminating Engineering Society) file. This file defines the light distribution of the device, essential for accurate lighting calculations in Revit or when exporting to software like DIALux.
- Electrical Parameters: Voltage (V), apparent power (VA), power factor, and load are indispensable parameters for electrical load analysis and panel sizing.
- Identity Parameters: Information such as manufacturer, model, product code, and a link to the real product data sheet.
Having a library of Revit electrical families that meet these criteria is no longer an advantage—it’s a competitive necessity in a market valued at more than $3.5 billion for MEP software.
Types of Lighting Families
Not all lighting families are created equal. For an MEP professional, it’s vital to distinguish between decorative families and those that provide intelligence to the model.
1. Generic vs. Electrical (MEP) Families
| Characteristic | Generic/Decorative Family | Electrical (MEP) Professional Family |
|---|---|---|
| Electrical Connector | No | Yes, for connection to circuits |
| Photometric Data (IES) | No | Yes, for precise lighting analysis |
| Load Parameters | No | Yes (Voltage, Power, etc.) |
| Primary Use | Visual representation, renders | Calculation, analysis, technical documentation |
2. Parametric Families: The Key to Efficiency
Parametric Revit luminaires are those that allow you to modify their properties (such as length, angle, or number of light sources) through parameters, without editing the base geometry. This is crucial to adapt a single file to multiple conditions, such as adjusting LED strips to different crown molding lengths or configuring track lighting systems.
3. Families with Integrated IES Photometric Data
Integrating IES files is essential for professional lighting design. This standard (LM-63) ensures that the lighting simulation faithfully reflects the luminaire’s real-world performance. When downloading a family, it’s crucial to verify that the IES file is properly loaded and linked to the light source to ensure the validity of any subsequent lighting analyses.
Download and Integrate High-Quality Families
Finding families that meet all these technical requirements can be challenging. LibraryRevit.com solves this by offering an extensive, curated catalog of Revit lighting families, 100% free and optimized for professionals.
Our toolkit is designed to maximize your productivity. Follow this workflow:
- Browse and Find: Use the filters in the category Electrical to quickly locate the type of luminaire you need. The two key sections are:
- Electrical Lighting (MEP): Your main category for families with all the electrical connectors and parameters needed for a full MEP project.
- Indoor Lighting: A collection that balances aesthetics and functionality, ideal for designers who need both visual performance and technical data.
- Preview Without Opening Revit: Need a quick model check before downloading? Use our free BIM Viewer tool. Simply drag the RFA file and you can analyze geometry and parameters directly in your browser. This is ideal for verifying quality without consuming your computer’s resources.
- Download with Confidence: All resources are free. Sign up in seconds and download the family, compatible with Revit versions from 2020 to 2026.
- Integrate and Connect: Load the family into your Revit project and connect it to your electrical circuits. The load parameters will automatically update in your panel planning tables, saving you time and reducing errors.
Best Practices for MEP Professionals
To optimize the use of lighting families in your projects, follow these key strategies:
- Use Only Certified Families: Ensure regulatory compliance and reduce review and correction tasks.
- Leverage Arrays and Shared Parameters: Increase modularity and avoid duplicating families, keeping your projects lean and manageable.
- Centralize Library Management: Use a central server or cloud-based solution to manage your library of families and ensure the entire team uses the same standardized components.
- Check Compatibility: Always verify that the family is compatible with your version of Revit. LibraryRevit continually updates its catalog to maintain compatibility with the latest versions.
Types of Revit Lighting Fixture Families for Specialized Projects
Commercial and Industrial High-Demand Fixtures
Modular LED Panel 60×60 cm
- Powers: 36W/40W/50W with DALI regulation
- Variable CCT: 3000K/4000K/5000K/6500K
- UGR <19 for office spaces per EN12464-1
- Luminous efficacy >120 lm/W certified
- L70 life >50,000 hours with manufacturer warranty
High-Performance Linear LED Fixtures
- Modular lengths: 600mm/1200mm/1500mm/3000mm
- Luminous distributions: Symmetric/Asymmetric/Batwing
- Powers up to 150W with integrated driver
- Compatible with building management systems (KNX/BACnet)
Industrial High-Bay LED
- Application: Warehouses with heights of 6–15 meters
- Distributions: 60°/90°/120° depending on space geometry
- Powers: 100W/150W/200W/300W/400W
- Protection: IP65/IP66 for harsh environments
- Power factor >0.95 and THD <10%
Residential Premium Lighting
Recessed Adjustable Downlights
- Standard diameters: Ø90mm/Ø120mm/Ø160mm
- Beam angles: 24°/38°/60° depending on application
- Tunable White CCT: 2700K-6500K with circadian control
- 1-100% dimming with flicker-free operation (<1%)
Architectural LED Panels
- Designs: Surface-mounted/Semi-recessed/Suspended
- Geometries: Circular/Rectangular/Customizable
- Visual effect: Direct/Indirect/Direct-indirect
- Materials: Anodized aluminum/Stainless steel/PMMA
Specialized Fixtures by Sector
Healthcare Sector – Surgical LED
- Illumination >160,000 lux in the operative field
- CRI >95 (Ra)
- Color temperature 4000K ±200K stable
- Medical certification: IEC 60601-2-41/FDA Class II
- Passive cooling system without fans
Chemical Industry – Explosion Proof
- Certifications: ATEX Zone 1/IECEx/NEC Class I Div 1
- Materials: Aluminum/Copper-free, 316L stainless steel
- Protection rating: IP67/IP68 for corrosive environments
- Operating temperature: -40°C to +70°C
Parametric vs Static: Technical Analysis
Technical Advantages of Parametric Families
Parametric Revit lighting fixture families offer essential flexibility for complex projects and design variations:
Intelligent Dimensional Adaptability:
- Variable lengths with automatic constraints (24\”–118\”)
- Stepwise powers by length: 18W/m for LED strips
- Multiple CCTs in the same family: 3000K/4000K/6500K with a parameter
- Mounting configurations: Recessed/Surface/ Pendant/Track
Advanced BIM Model Optimization:
- Reduced file size: one parametric family vs. 15 static families
- Consistency standards: Global changes with a single edit
- Mass updates: Specification changes project-wide
- Memory management: ~40% less RAM usage on large models
Documented Use Cases
México City Corporate Tower Project – 2024:
- Challenge: 45 floors, 15,000 luminaires, 120 different typologies
- Solution: 12 master parametric families
- Result: 40% reduction in modeling time, 25% energy savings
- ROI: USD 180,000 in overall project efficiency
Tijuana Automotive Plant – 2024:
- Challenge: Production halls with variable requirements
- Implementation: High-bay families with customizable distributions
- Benefit: Automatic compliance with industrial NOM standards
LibraryRevit Resources for Lighting Design
Specialized Families Available
LibraryRevit.com offers the most complete collection of certified Revit lighting fixture families for MEP professionals, with more than 1,500 specialized elements:
Electrical Lighting – Main Category
- Industrial MEP Lighting: +200 families with verified IES data
- Emergency Systems: Compliant with NFPA 101 and local codes
- Architectural LED Strips: Parametric families with variable length
- Control Systems: Occupancy sensors, daylight sensors, DALI controllers
Interior Lighting – Architectural Category
- Premium Decorative Fixtures: +150 high-end models for visualization
- Accent Lighting: Directional spots with adjustable angles
- Architectural Integration: Recessed luminaires integrated into furniture
- Hospitality Collection: Hotel/restaurant-specific elements
Documented Competitive Advantages
vs BIMsmith/BIMstore Traditional Markets:
| Aspect | LibraryRevit | Traditional Competitors |
|---|---|---|
| MEP Organization | ✅ Technical specialty categories | ⚠️ Generic classification |
| Technical Metadata | ✅ Complete and verified | ⚠️ Often incomplete |
| IES Certification | ✅ LM-63-19 verified | ❌ IES files optional |
| Update Frequency | ✅ Weekly automatic | ⚠️ Biweekly manual |
| Technical Support | ✅ Engineering specialists | ⚠️ Generic support |
| Multi-version Support | ✅ Revit 2020-2026 guaranteed | ⚠️ Version compatibility varies |
Frequently Asked Questions
How to download free certified Revit lighting fixture families on LibraryRevit?
The process is completely free and unrestricted:
- Simple registration on LibraryRevit.com (requires a valid email)
- Specialized navigation by categories [Electrical Lighting] or [Interior Lighting]
- Full technical preview of electrical specifications and IES data
- Immediate download in native RFA format, with no limits
All Revit lighting fixture families include complete metadata, IES files where applicable, and compatibility with Revit 2020-2026.
What are the key differences between electrical and decorative families?
Electrical MEP Families (Professional Grade):
- Integrated and certified IES LM-63-19 photometric data
- Complete electrical parameters (voltage, power, power factor)
- Functional MEP connectors for circuit integration
- Technical certifications (Energy Star, DLC, ATEX where applicable)
- Compatible with automatic Revit analysis and specialized software
Architectural Decorative Families:
- Emphasis on visual 3D representation for renders
- Detailed materials and textures for presentations
- Basic dimensional information without technical specifications
- No electrical data or functional MEP connectors
- Optimized for visualization, not for engineering analysis
Are lighting fixtures fully compatible with Revit 2026?
Yes, all LibraryRevit lighting fixture families are natively compatible with Revit 2026.1, including:
New features leveraged:
- Optimized arrays: 300% performance improvement for serialized luminaires
- TopoSolid integration: Exterior luminaires on complex terrains
- Cloud sync enhanced: Automatic with Autodesk Construction Cloud
- Improved IFC export: Photometric data preserved for interoperability
Backward compatibility guaranteed: They work seamlessly in versions 2020-2024 with all core features.
How to correctly integrate IES photometric data into projects?
Step-by-step technical process:
- IES file validation: Verify LM-63-19 format and certified origin
- Automated import: LibraryRevit families already include embedded IES
- Parametric setup: Configure power/CCT variables where applicable
- Photometric testing: Verify distribution with ElumTools/DIALux
- Performance validation: Confirm accurate calculations in the final model
Recommended testing tools: IES Visual for validation, DIALux Evo for full analysis, AGi32 for North American compliance.
What standards must professional electrical families meet?
Mandatory International Standards for 2026:
- IES LM-63-19: LED photometric data format updated
- ISO 19650-2:2024: Requirements for BIM objects certification
- Energy Star v2.1: Minimum efficiency 120 lm/W
- DLC 5.1: Qualification for energy incentives
Local standards (region-dependent):
- Mexico: NOM-013-ENER-2013, NOM-017-ENER/SCFI-2008, CFE
- Colombia: RETIE 2013, NFPA 70 (NEC), ICONTEC
- Spain: updated REBT, RD 1890/2008, CE marking
- USA/Canada: NECA standards, CSA certification, FCC compliance
Next Steps
Stop wasting time searching for or creating high-quality luminaire families. The key isn’t having thousands of files, but having the right files: those that are technically precise, parametric, and ready to fit into a complex BIM workflow.
Key Takeaways
- ✅ Prioritize MEP Families: Always ensure your luminaires include electrical connectors and load parameters.
- ✅ Demand Photometric Data: Do not compromise the quality of your analyses. Use only families with integrated IES files.
- ✅ Leverage Parametric Design: Use parametric families to maximize flexibility and minimize rework.
- ✅ Verify Before Downloading: Use tools like BIM Viewer to quickly inspect families and ensure quality.
Accelerate Your Implementation with LibraryRevit
Stop searching and start designing. Access our complete catalog and optimize your MEP projects today with resources that are 100% free and of professional quality.
