Base cabinet with parametric open shelf

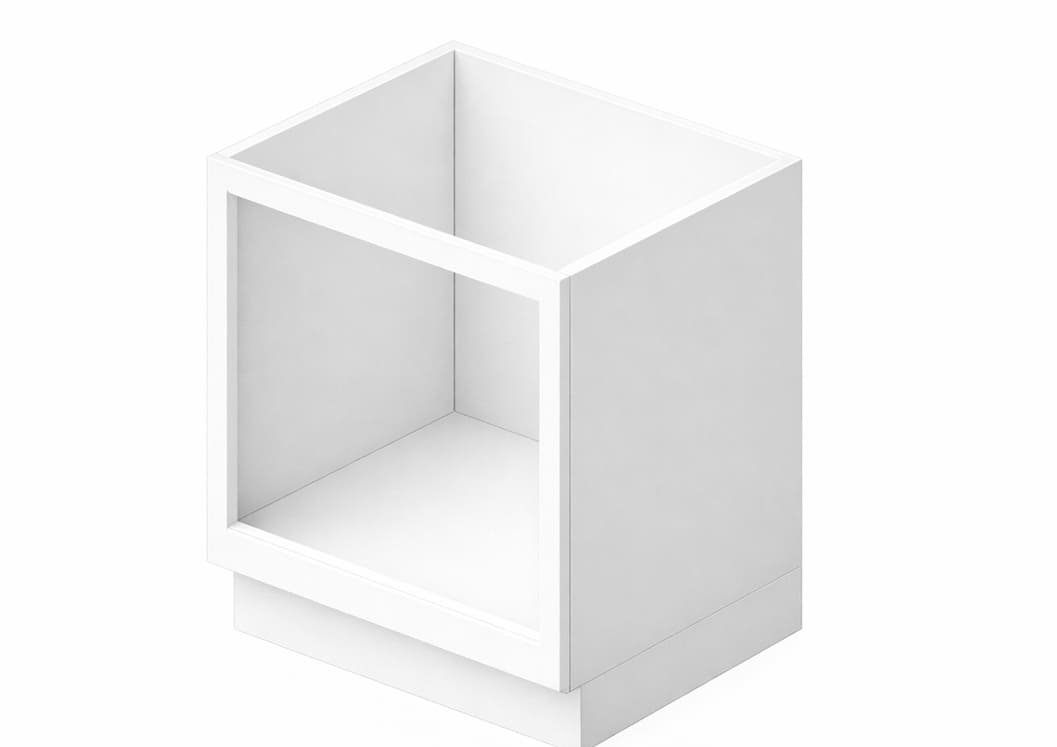

This base cabinet open shelf Revit family provides a modern white kitchen module with a clean open front bay for microwaves, baskets, or display storage.

Modeled at LOD 300, it includes three common widths, adjustable width, depth, height, toe-kick, face frame, shelf thickness, and material parameters for carcass and trim.

This base cabinet suits residential kitchens, apartments, and compact hospitality casework where coordinated plans, elevations, schedules, and 3D coordination need reliable geometry through design development.
