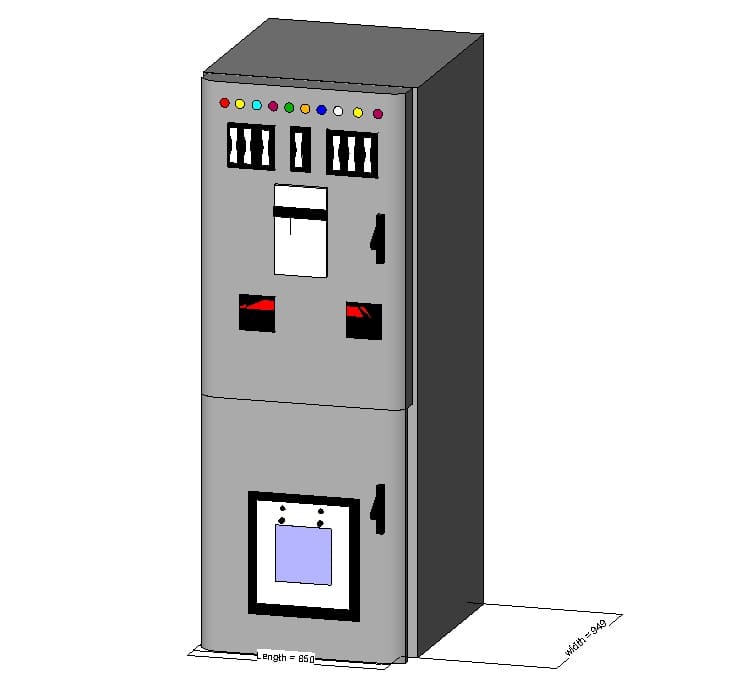

Revit family of a floor-mounted 33 kV vacuum circuit breaker cabinet for medium-voltage switchgear rooms. Parametric dimensions for height, width, and depth, with material parameters for the metal enclosure and front panel elements to control appearance and scheduling.
Delivered with multiple predefined types for common module sizes and nameplate ratings, plus shared parameters for equipment ID and electrical data. Includes MEP electrical connectors for system assignment and supports LOD 200–300 documentation.
- Format RFA
- File Size 1.38 MB
- Version
- Company WECHULI ELECTRICALS
