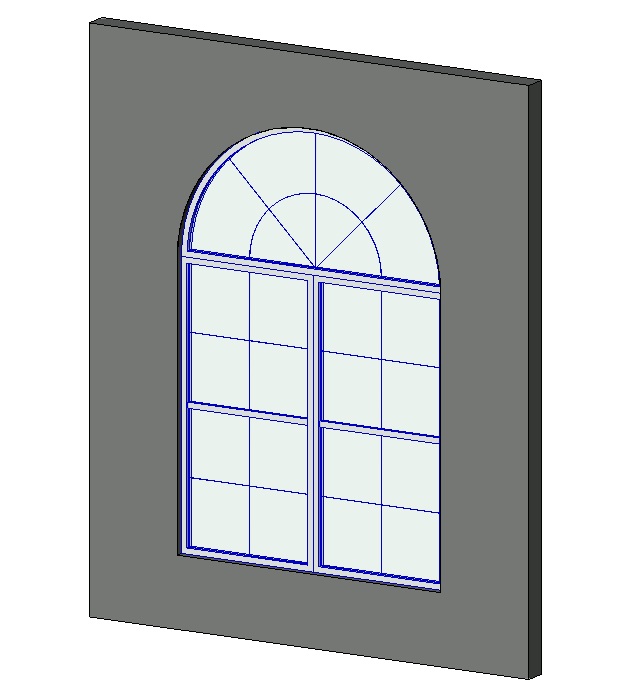

Arched window with parametric fanlight

Arched window

Classic arched window featuring a radial fanlight above two vertical sashes, with refined divided lites for timeless character.

Includes parametric controls for width, height, arch rise, frame depth, and muntin thickness, plus editable materials for frame and glass. Grilles can be toggled for clean documentation.

Ideal for traditional residences, entries, stair landings, and renovations requiring a refined focal point with accurate proportions.

  • Uploaded by: Geonara andrade
  • Format RFA
  • File Size 608.00 KB
  • Version
  • Company
