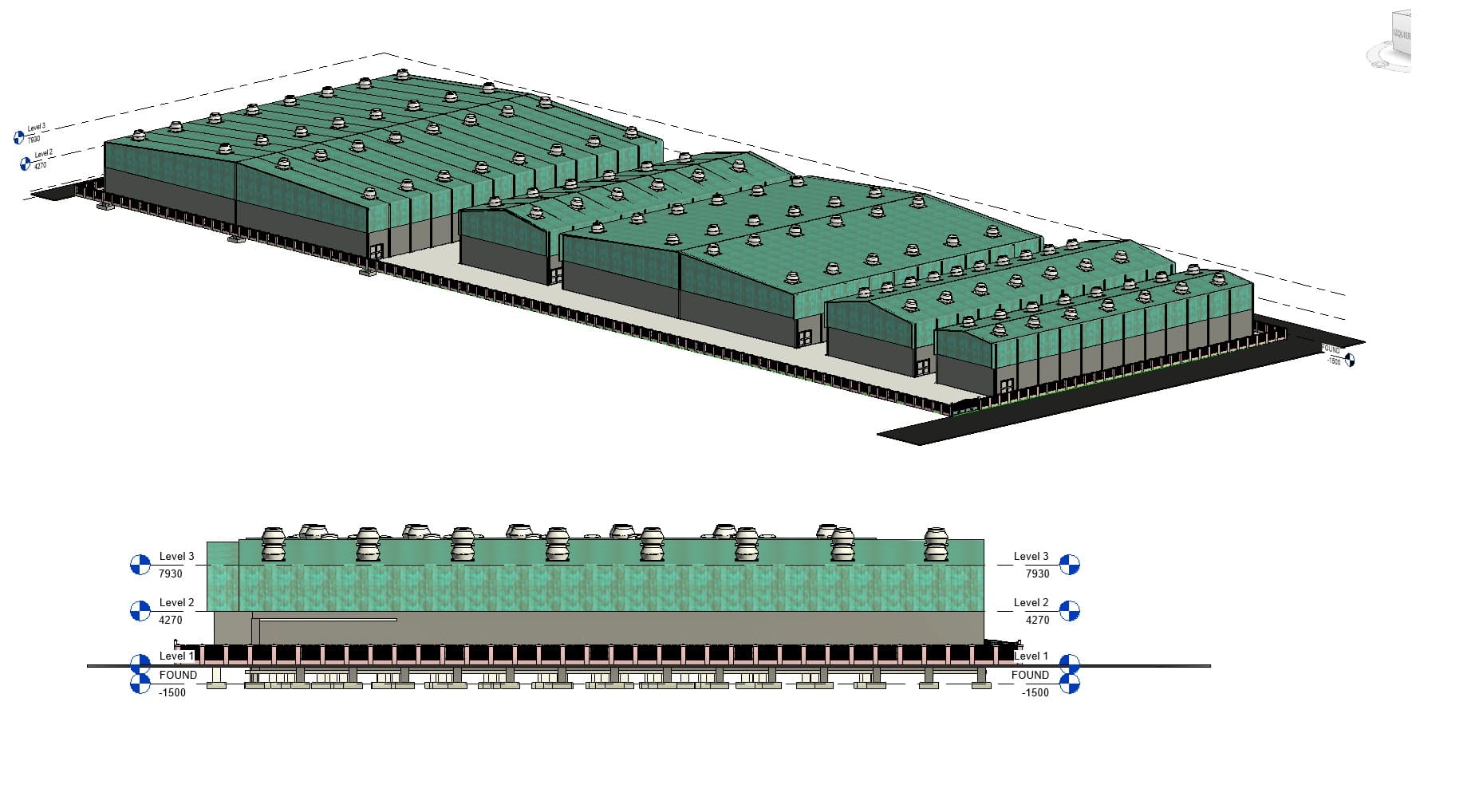

Revit family of a complete industrial complex composed of five blocks: Office/Stores, Accommodation, Liquor Plant, Warehouse, and CSD & Water Plant. The buildings are modeled as multi-bay steel sheds with gable roofs and rooftop turbine ventilators, column grids, pedestal footings, and perimeter platforms. Included views show site plan, elevations, and 3D axonometric. Key levels are provided (Found −1.50 m, L1 0.00, L2 4.27 m, L3 7.93 m) to support schematic design, site layout, and early coordination.
-
Uploaded by:
Saravanan K
-
Format
RVT
-
File Size
22.91 MB
-
Version
-
Company
Saravan Design
