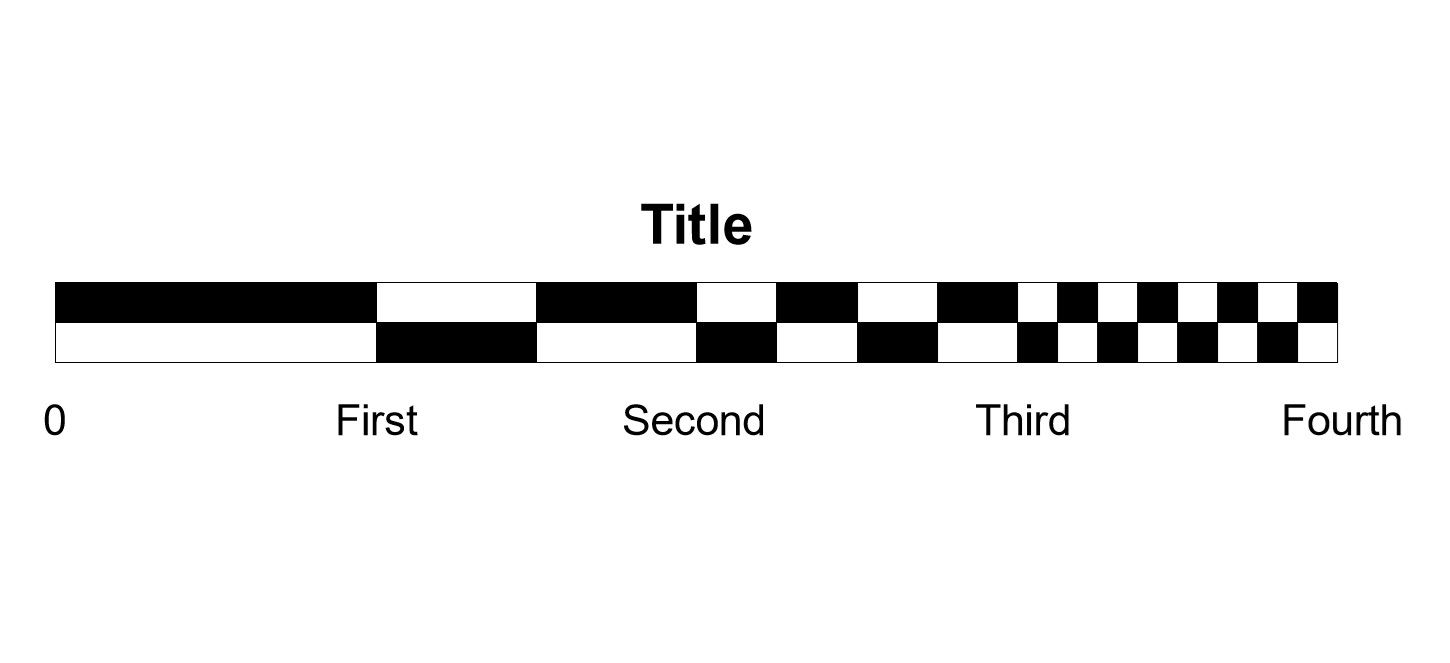

Revit family of a graphic scale bar for plan sheets with clear alternating divisions and an editable title. Fully parametric: adjust overall length, number of segments, labels, and text styles; includes multiple predefined types for common scales to suit metric or imperial projects. Lightweight 2D annotation optimized for clean plotting and consistent documentation across views.
- Format RFA
- File Size 184.00 KB
- Version
- Company
