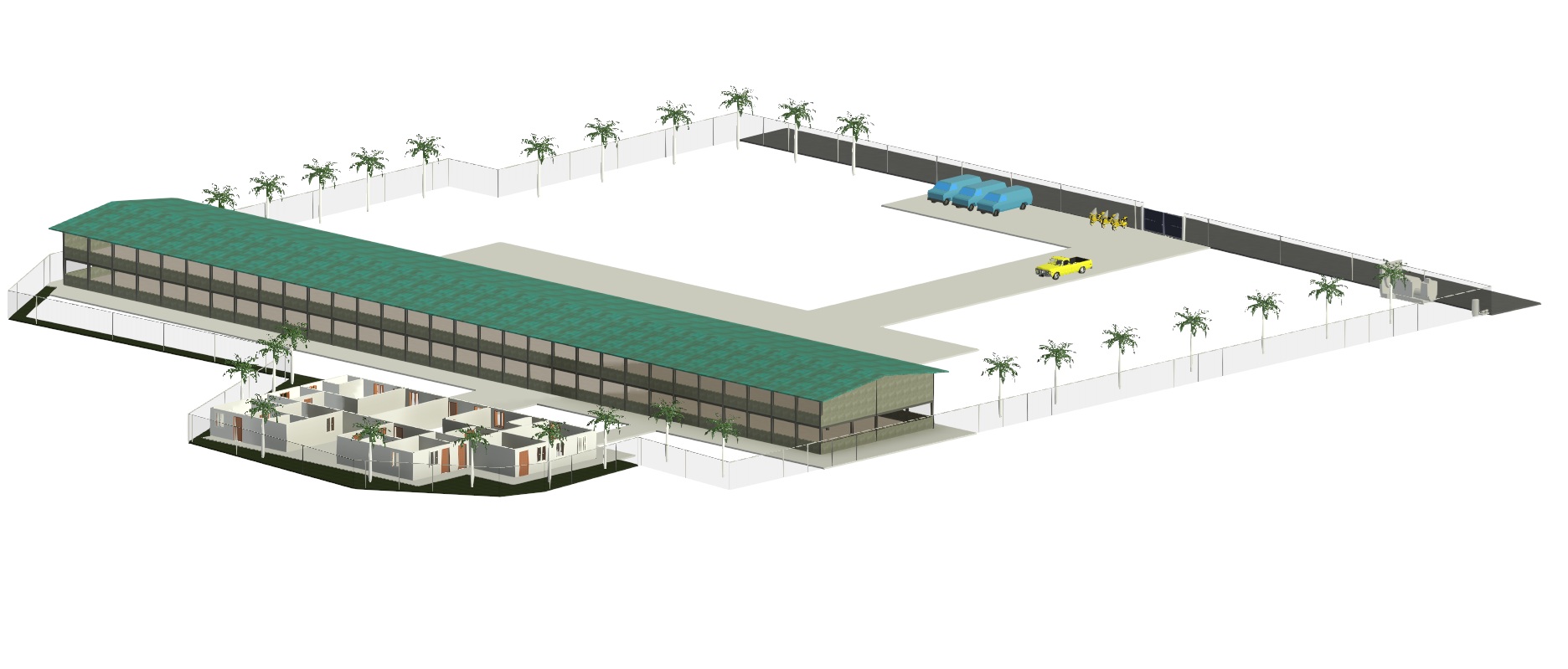

Concept site model for a compact dairy facility designed in Revit. The layout features a long linear cattle barn, a clustered staff accommodation block, internal service roads with turning apron, truck/van parking, water storage and bore-well area, entrance gate, perimeter fencing, and perimeter tree planting. Delivered with 3D views, a site plan, and a section—ideal for conceptual planning, presentations, and early coordination. Materials and planting can be edited to match project standards.
-
Uploaded by:
Saravanan K
-
Format
RVT
-
File Size
30.58 MB
-
Version
-
Company
Saravan Design
