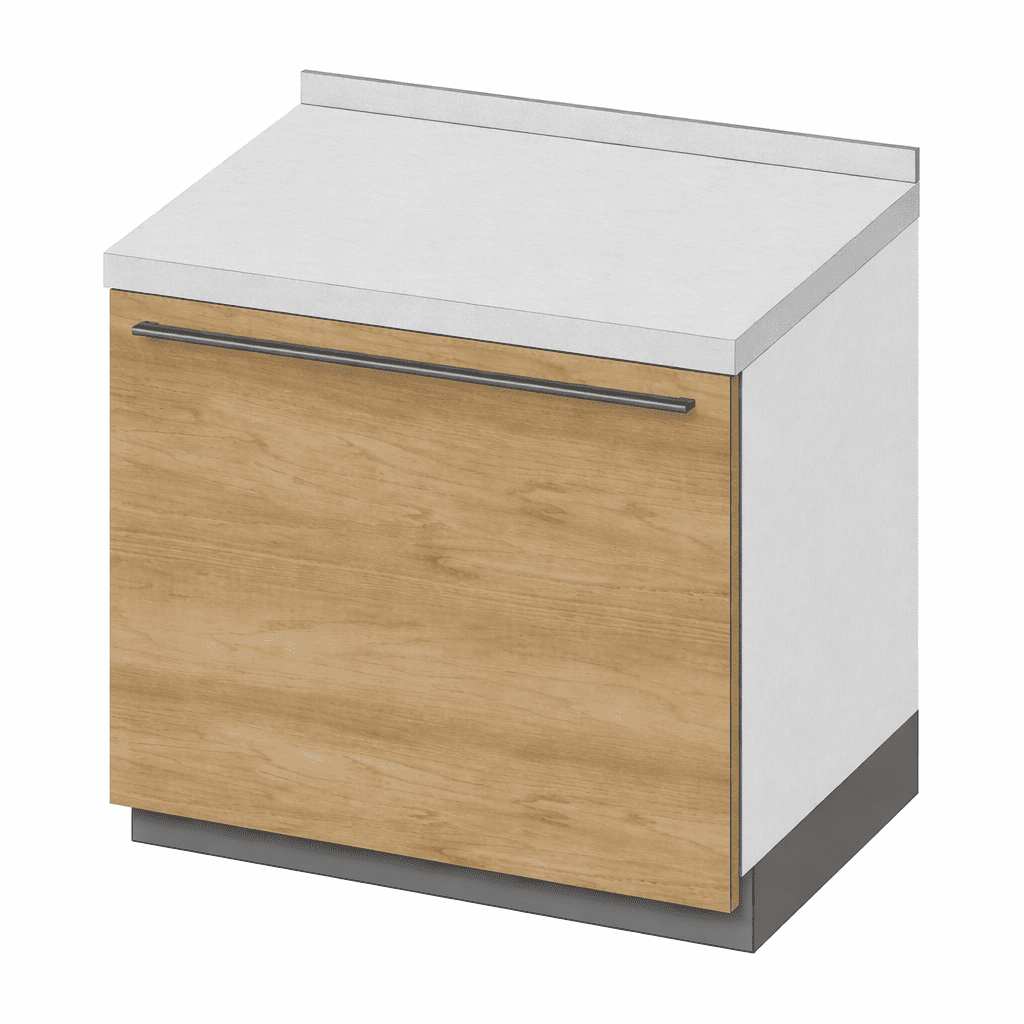

Revit Family of a modular kitchen base cabinet suitable for residential and commercial layouts.
Includes predefined types for depths (600, 650, 800 mm), module heights (600, 720 mm), and base/plinth heights (100, 130, 160 mm), with parametric controls to fine-tune dimensions and materials.
Clean LOD 300 geometry separates carcass, front, countertop, toe kick, and handle for accurate visualization, takeoffs, and specifications.
- Format RFA
- File Size 480.00 KB
