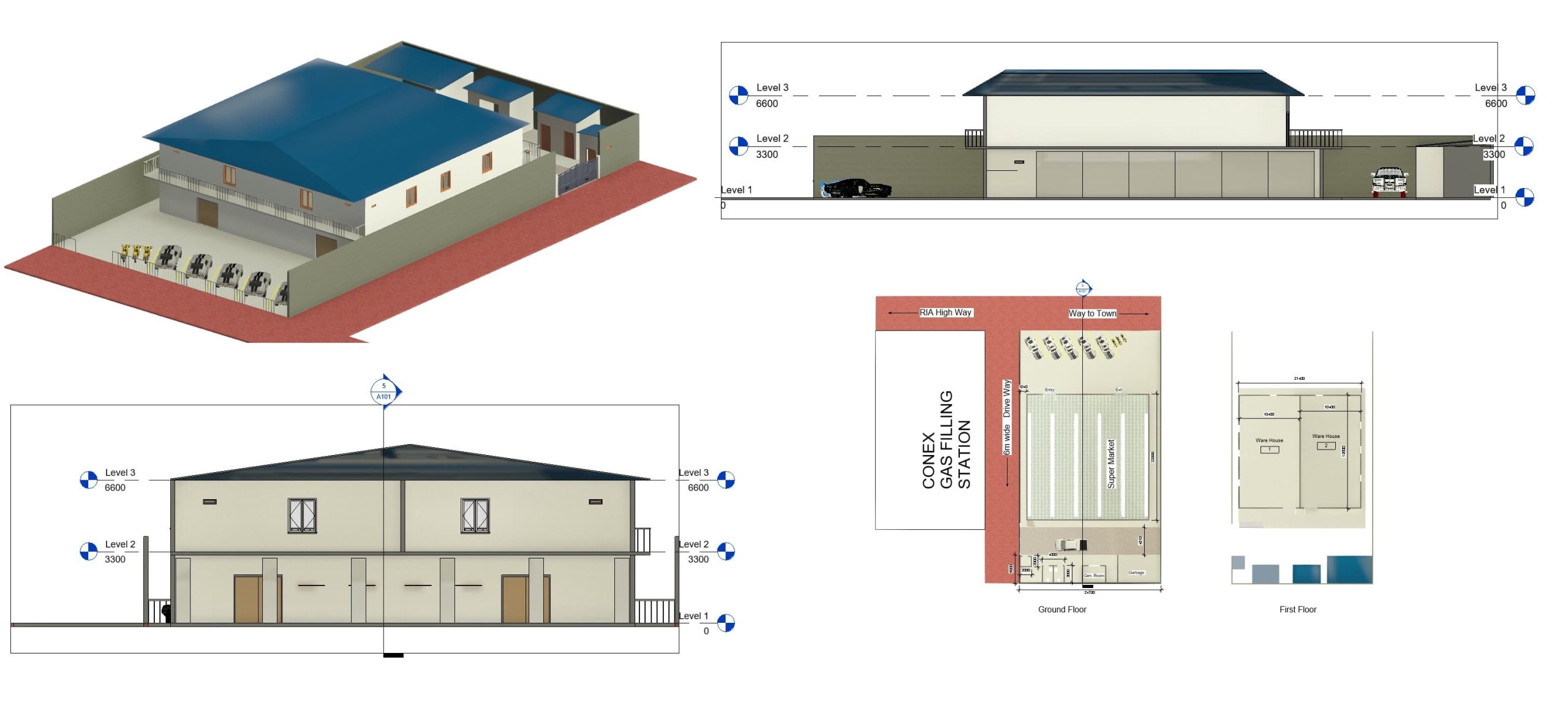

Revit family of a compact retail complex combining a ground-floor supermarket with an upper-level warehouse. The model features a hipped metal roof, perimeter walls and gates, forecourt parking and bike racks, a 6 m drive lane, and service areas (office/toilets, generator room, garbage). The first floor contains two separated warehouse bays accessed by a service stair and loading court. Included views: 3D axons, elevations, and dimensioned floor plans. Key levels: 0.00 m, 3.30 m, 6.60 m.
- Format RVT
- File Size 21.98 MB
- Version
- Company Saravan Design
