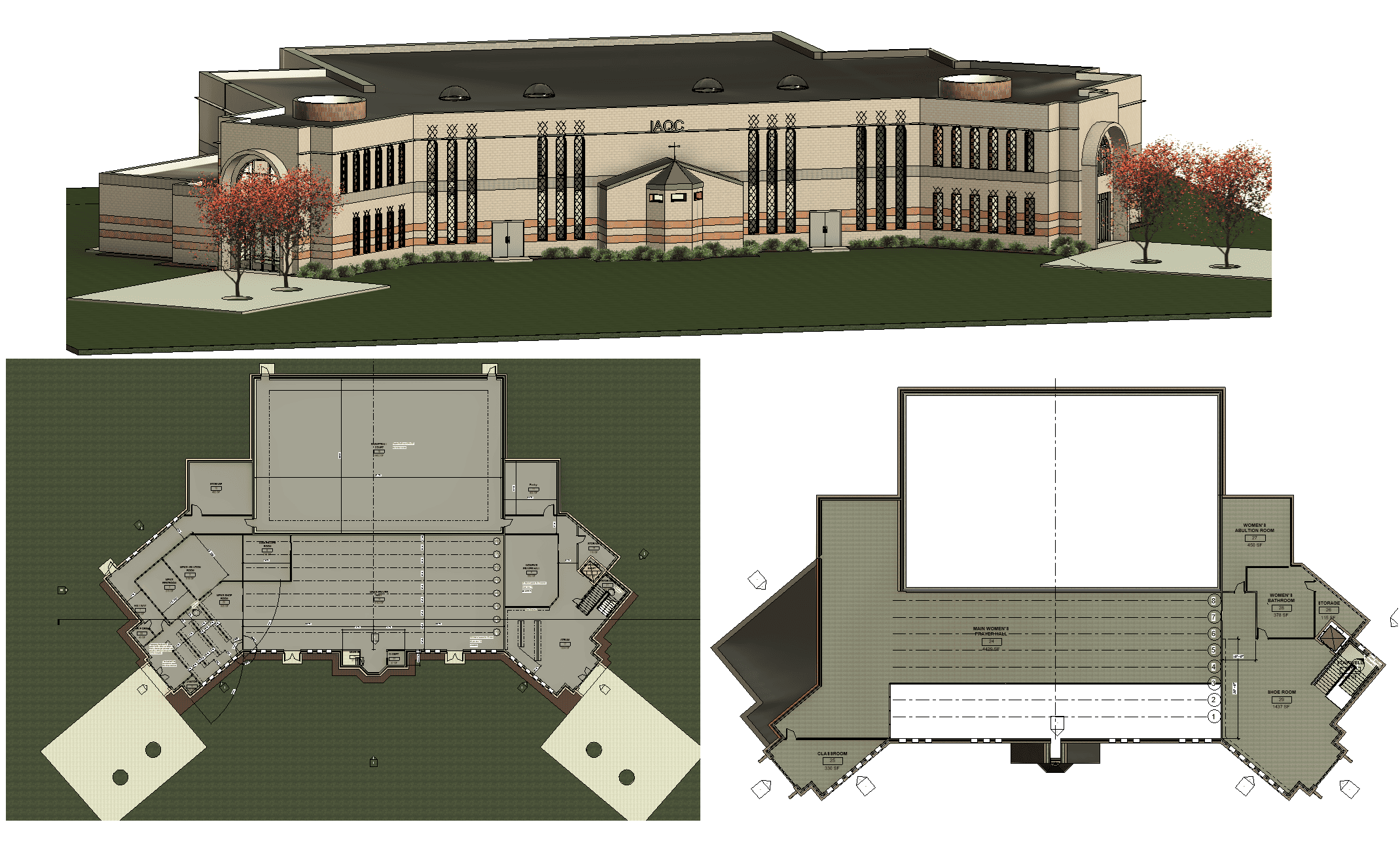

Complete two‑story mosque modeled for design, documentation, and visualization. Program includes a main prayer hall, women’s prayer hall/mezzanine, ablution rooms, shoe room, library, classrooms, storage, and support spaces. Brick façade with arched entries, vertical screen windows, and small domed elements.
The file provides Level 1–2 plans, roof and site plans with planting, building and interior elevations, a longitudinal section, door/room/window schedules, 3D views, and renderings.
Cleanly organized browser and ready as a template/reference for faith community facilities.
- Format RVT
- File Size 30.22 MB
- Version
- Company
