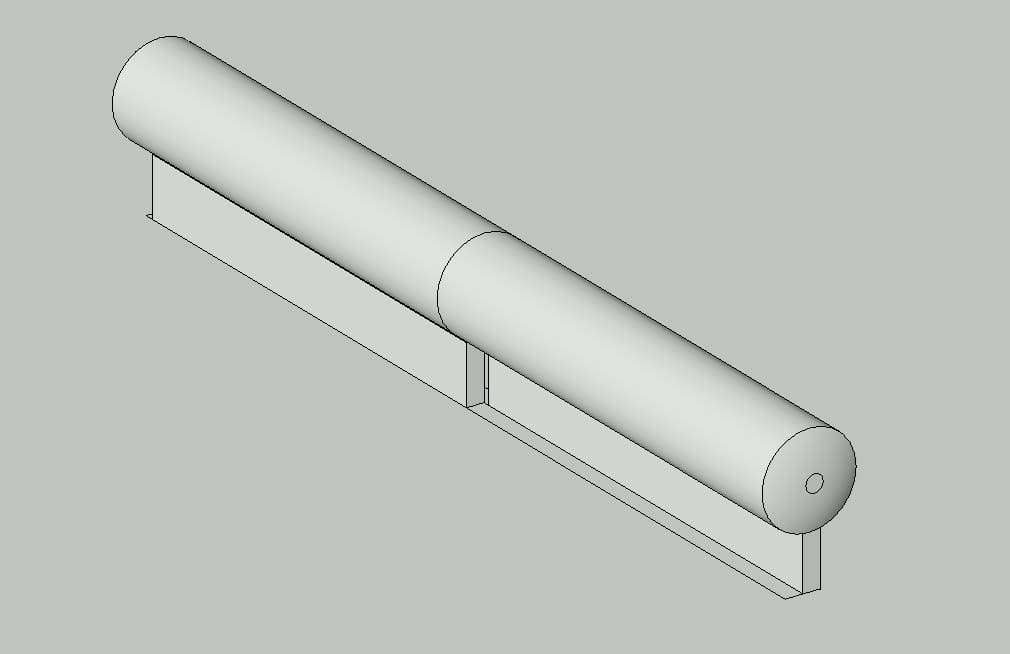

Revit Family of a cylindrical door hinge for accurate hardware coordination in doors and gates. Offers parametric controls for barrel diameter, leaf length/width/thickness, pin hole, and placement offsets; includes multiple predefined sizes for quick selection. Suitable for LOD 300, with material and identity parameters ready for hardware tagging and schedules.
- Format RFA
- File Size 940.00 KB
- Version
- Company
