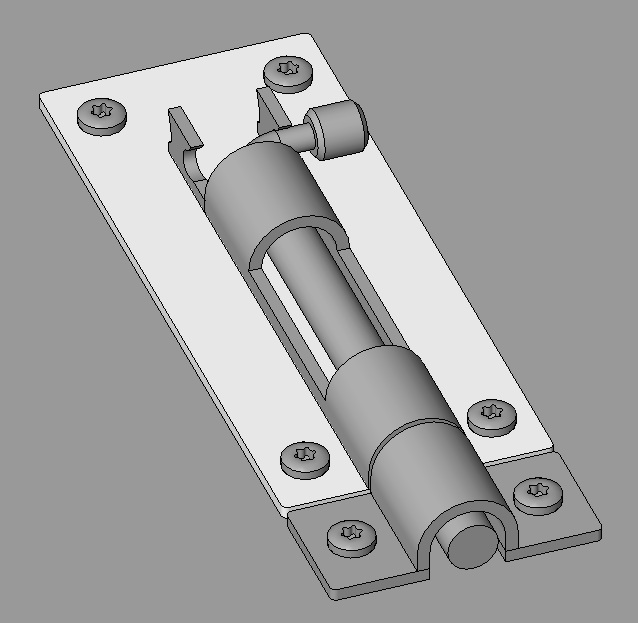

Revit Family of a barrel bolt hinge lock for doors and gates, modeled in 3D for accurate hardware detailing. Includes multiple predefined sizes and parametric controls for plate dimensions, bolt diameter and throw, screw visibility, and material finishes. Suitable for LOD 300 coordination and detailed elevations/sections, with parameters ready for hardware tagging and schedules.
- Format RFA
- File Size 1.51 MB
- Version
- Company
