Compact two-story residential block modeled in Revit. Ground floor set up as a workshop/utility zone; first floor contains six 1‑bedroom flats with living-dining, kitchenette, bedroom and bathroom. A continuous balcony/corridor serves all units, with steel railings and sliding doors.

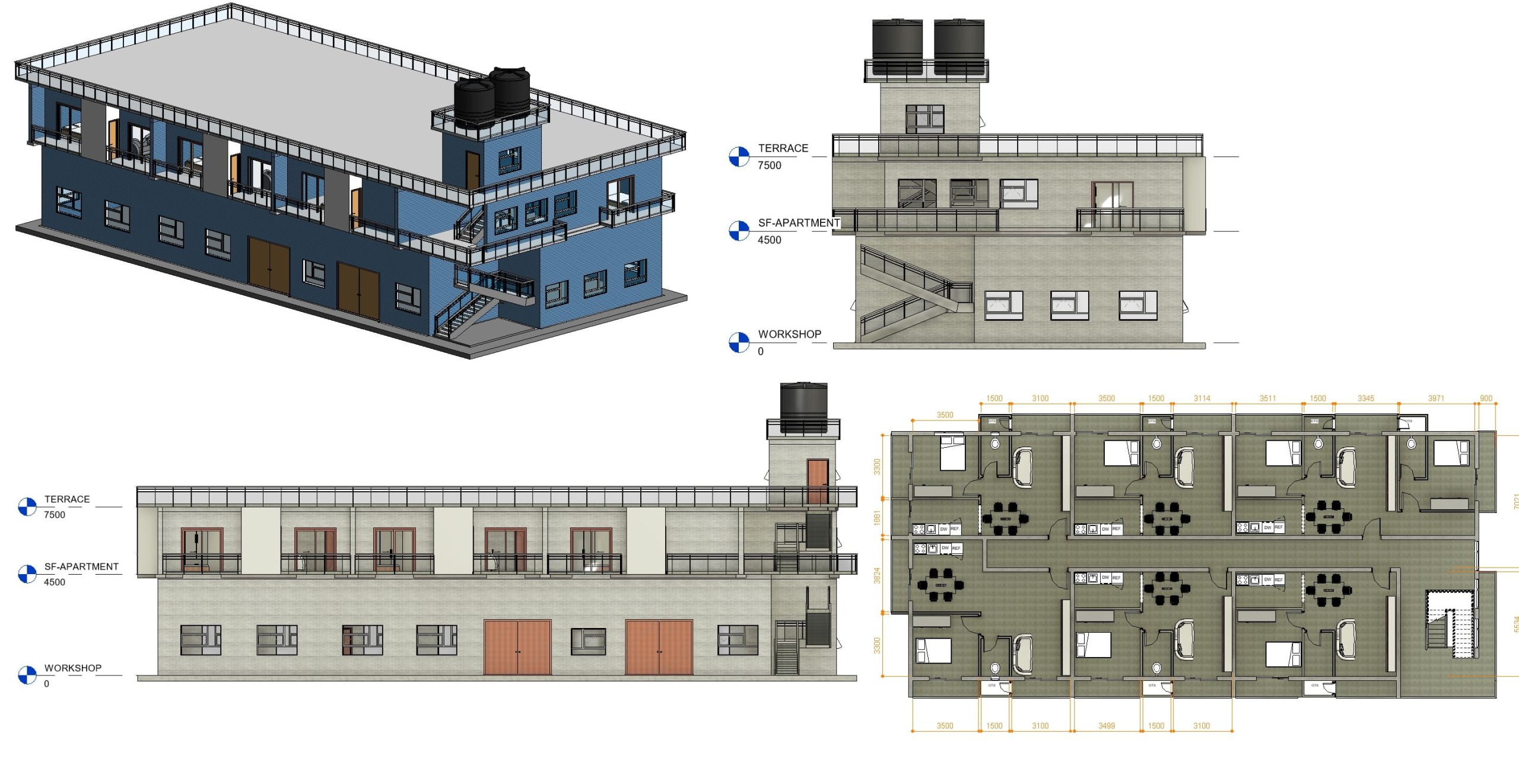

An external stair connects to a stair tower and a roof terrace with twin water tanks. Package includes 3D views, elevations, and a dimensioned floor plan with levels at 0.00 m (GF), 4.50 m (SF), and 7.50 m (terrace). Ideal for mixed-use housing studies and quick site context.
- Format RVT
- File Size 30.60 MB
- Version
- Company Saravan Design
